Hexagon Socket Head Cap Screw 316 Stainless Steel UNC Thread Variant-4 Wurth

BRAND: Wurth
SKU: 7064337075
$109.80 List price: $138.00
10 PCS ($10.98 per PCS)
+ −
30 Days Return Electricians Unlock Trade Access

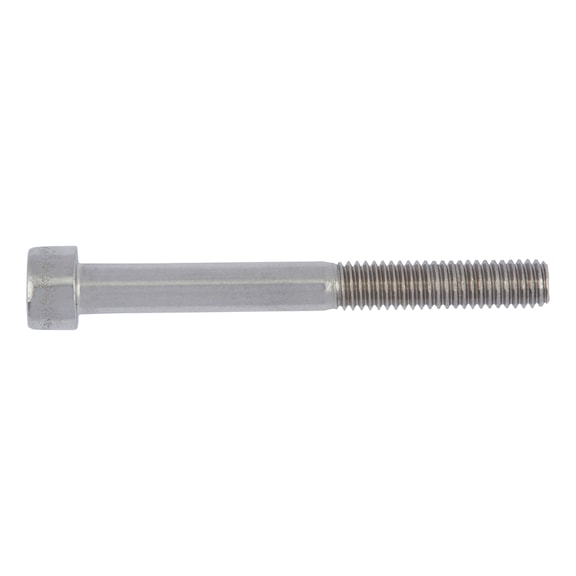

Hexagon Socket Head Cap Screw made from durable 316 stainless steel with UNC threading is perfect for industrial machinery assembly and marine applications.

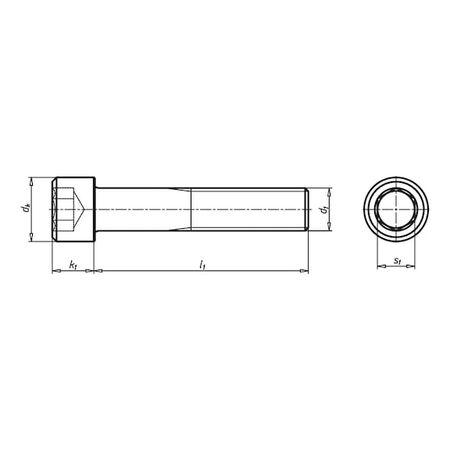

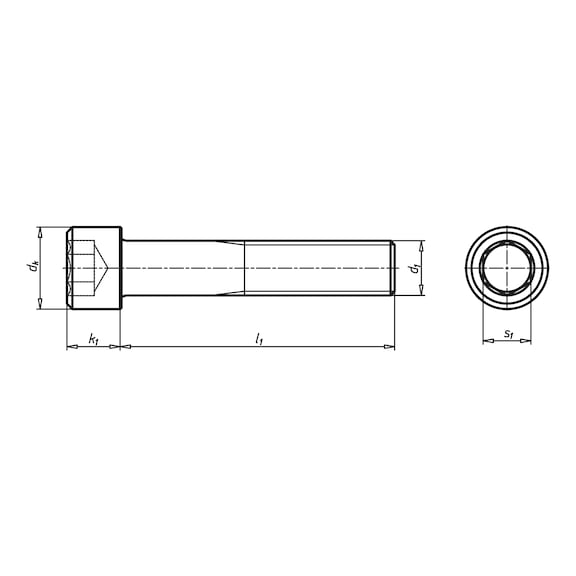

Technical Specifications
  • Nominal diameter: 3/8 inch (9.53 mm)
  • Length: 3/4 inch (19.05 mm)
  • Head diameter: 0.562 inch (14.27 mm)
  • Head height: 0.375 inch (9.53 mm)
  • Internal drive: HS5/16 inch
  • Material: Stainless steel AISI 316
  • Surface finish: Plain
  • Thread starts per inch: 16
  • Dimensions (H x L x W): 19.05mm x 19.05mm x 9.53mm
  • Weight: 0.05 kg
Key Features
  • Made from stainless steel AISI 316, comparable with A4 stainless steel
  • Mechanical properties based on ASTM F837 standard
  • Thread tolerance according to ASME B1.1 = 3A for external thread
  • UNC thread with 16 threads per inch
  • Plain surface finish
Professional Installation Requirements
  • Installation by qualified personnel recommended to ensure proper torque and thread engagement.
Applications
  • Industrial machinery assembly
  • Marine and chemical equipment
  • Corrosion-resistant fastening applications
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Corrosion resistance extends product life reducing replacement frequency
  • Stainless steel material is recyclable
Warranty Information

Warranty against manufacturing defects as per Wurth standard policy.

Available Now

Available for immediate purchase, ideal for industrial and marine fastening applications.
