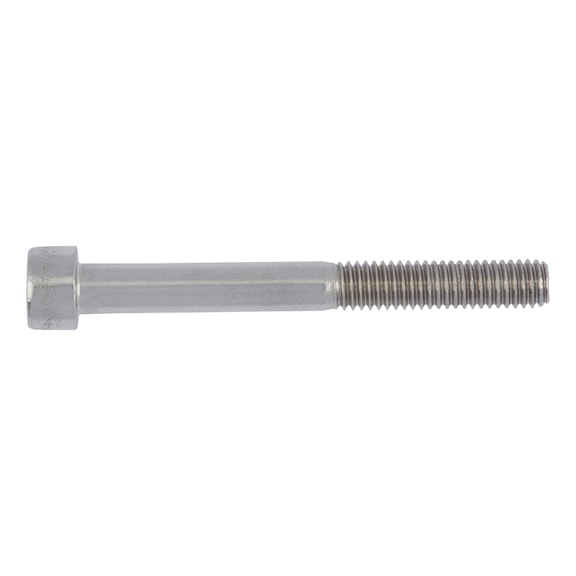

Hexagon Socket Head Cap Screw | 316 Stainless Steel | UNC Thread | Hex Socket Design | @Pack of 10 | by Wurth
Hexagon Socket Head Cap Screw made from durable 316 stainless steel, featuring UNC thread and a hex socket design for secure tightening. Ideal for industrial machinery assembly and marine applications, this screw offers excellent corrosion resistance and complies with ASTM standards, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Socket Head Cap Screw | 316 Stainless Steel | UNC Thread | Hex Socket Design | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 7064337150
Alternatively Known As: Hex Socket Cap Screw, Hexagon Head Bolt, Stainless Steel Socket Screw, UNC Thread Screw
Technical Specifications
- Nominal diameter: 3/8 inch (9.53 mm)
- Length: 1-1/2 inch (38.1 mm)
- Head diameter: 0.562 inch (14.27 mm)
- Head height: 0.375 inch (9.53 mm)
- Internal drive: HS5/16 inch
- Material: Stainless steel AISI 316
- Surface finish: Plain
- Thread starts per inch: 16
- Dimensions (H x L x W): 9.53mm x 38.1mm x 9.53mm
- Weight: 0.05 kg
Key Features
- Made from stainless steel AISI 316, comparable with A4 stainless steel for excellent corrosion resistance.
- Mechanical properties based on ASTM F837 standard.
- Thread tolerance according to ASME B1.1 = 3A for external thread.
- UNC thread with 16 threads per inch.
- Hexagon socket head for secure tightening.
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and secure fastening.
Applications
- Industrial machinery assembly
- Marine and chemical processing equipment
- Corrosion-resistant fastening applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements, minimizing waste.
Warranty Information
Standard manufacturer warranty against defects.
Available Now
Available for immediate purchase, ideal for industrial, marine, and chemical processing fastening applications.
