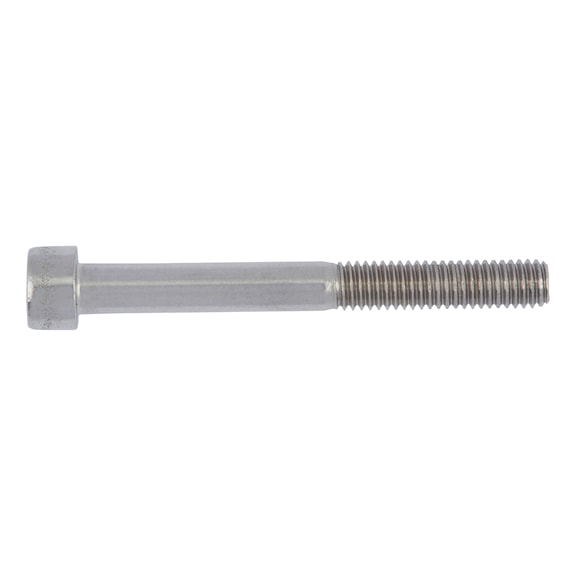

Hexagon Socket Head Cap Screw | 316 Stainless Steel | UNC Thread | Plain Finish | @Pack of 10 | by Wurth
Hexagon Socket Head Cap Screw made from durable 316 stainless steel with UNC thread, perfect for industrial machinery assembly and marine applications. This pack of 10 screws offers high strength and corrosion resistance, ensuring longevity and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Socket Head Cap Screw | 316 Stainless Steel | UNC Thread | Plain Finish | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 7064314100
Alternatively Known As: Hex Socket Cap Screw, Hex Head Cap Screw, Stainless Steel Socket Screw, UNC Thread Screw
Technical Specifications
- Nominal diameter: 1/4 inch (6.35 mm)
- Length: 1 inch (25.4 mm)
- Head diameter: 0.375 inch (9.53 mm)
- Head height: 0.250 inch (6.35 mm)
- Internal drive: HS3/16 inch
- Material: Stainless steel AISI 316
- Surface finish: Plain
- Thread starts per inch: 20
- Dimensions (H x L x W): 6.35mm x 25.4mm x 6.35mm
- Weight: 0.02 kg
Key Features
- Made from stainless steel AISI 316, comparable with A4 stainless steel
- Mechanical properties based on ASTM F837 standard
- Standard thread tolerance according to ASME B1.1 = 3A for external thread
- UNC thread with 20 threads per inch
- Plain surface finish
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and thread engagement.
Applications
- Industrial machinery assembly
- Marine and chemical environments requiring corrosion resistance
- General fastening applications requiring high strength and durability
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation) for mechanical fastening in electrical installations
Environmental Benefits
- Corrosion resistance extends product life reducing replacement frequency and waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Available for immediate purchase, ideal for industrial, marine, and chemical fastening applications.
