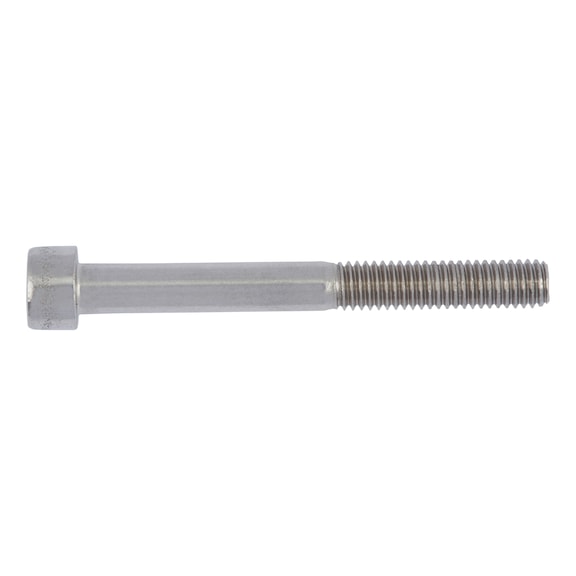

Hexagon Socket Head Cap Screw | AISI 316 Stainless Steel | UNC Thread | 20 Threads per Inch | by Wurth
Hexagon Socket Head Cap Screw made from AISI 316 stainless steel with UNC thread and 20 threads per inch—perfect for industrial machinery assembly and marine applications. Designed for corrosion resistance, this screw ensures durability and longevity in harsh environments, making it an ideal choice for professionals seeking reliable fastening solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Socket Head Cap Screw | AISI 316 Stainless Steel | UNC Thread | 20 Threads per Inch | by Wurth
Brand: Wurth
SKU: 7064314050
Alternatively Known As: Hex Socket Cap Screw, Hex Head Cap Screw, Stainless Steel Socket Screw, UNC Thread Screw
Technical Specifications
- Nominal diameter: 1/4 inch (6.35 mm)
- Length: 1/2 inch (12.7 mm)
- Head diameter: 0.375 inch (9.53 mm)
- Head height: 0.250 inch (6.35 mm)
- Internal drive: HS3/16 inch
- Material: Stainless steel AISI 316
- Surface finish: Plain
- Thread starts per inch: 20
- Dimensions (H x L x W): 6.35mm x 12.7mm x 9.53mm
- Weight: 0.01 kg
Key Features
- Made from stainless steel AISI 316, comparable with A4 stainless steel
- Mechanical properties based on ASTM F837 standard
- Thread tolerance according to ASME B1.1 = 3A for external thread
- UNC thread with 20 threads per inch
- Plain surface finish
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and fastening integrity.
Applications
- Industrial machinery assembly
- Marine and chemical processing equipment
- Corrosion-resistant fastening applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Corrosion resistance extends product life reducing replacement frequency
- Stainless steel material is recyclable
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Hexagon Socket Head Cap Screw ASME 183 316 Stainless Steel UNC is available for immediate purchase, ideal for industrial and marine corrosion-resistant fastening applications.
