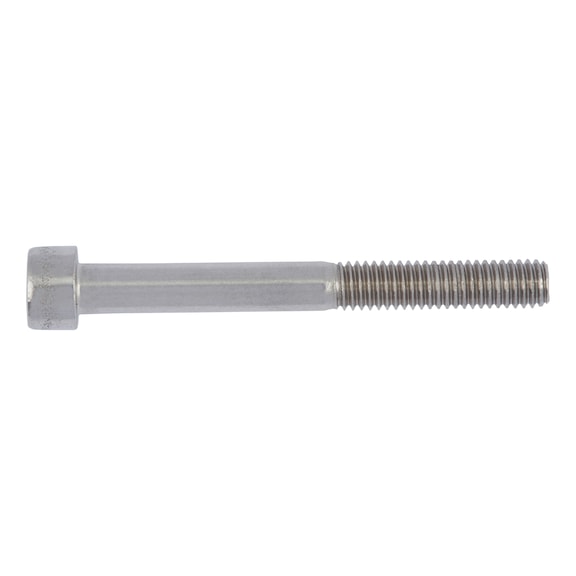

Hexagon Socket Head Cap Screw ISO 4762 | A2-70 & A2-50 Stainless Steel | Hexagon Socket Drive | @Pack of 50 | by Wurth
Hexagon Socket Head Cap Screw ISO 4762 is crafted from A2-70 & A2-50 stainless steel, ensuring exceptional corrosion resistance and durability. Ideal for mechanical assemblies, industrial machinery, and construction applications, this screw features a secure hexagon socket drive for reliable fastening. With RoHS compliance, it’s a safe choice for various projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Socket Head Cap Screw ISO 4762 | A2-70 & A2-50 Stainless Steel | Hexagon Socket Drive | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 94256
Alternatively Known As: Hex Socket Cap Screw, Allen Head Screw, ISO 4762 Screw, DIN 912 Screw, Stainless Steel Socket Screw
Technical Specifications
- Thread type x nominal diameter: M2.5
- Length: 6 mm
- Head diameter: 4.5 mm
- Head height: 2.5 mm
- Standards: ISO 4762
- Material: Stainless steel A2
- Property class: 70 (≤ M24), 50 (≥ M24)
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Socket head
- Drive type: Hexagon socket
- Internal drive: HS2
- Thread type: Metric thread
- Thread form: Standard metric thread
- Product class: A
- Dimensions (H x L x W): 2.5mm x 6mm x 6mm
- Weight: 0.05 kg
Key Features
- Complies with ISO 4762 standard, replacing DIN 912
- Made from stainless steel A2 for corrosion resistance
- Available in property class 70 for sizes ≤ M24 and class 50 for sizes ≥ M24
- Hexagon socket drive for secure tightening
- RoHS-compliant and environmentally safe
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate tools to ensure correct torque and secure fastening.
Applications
- Mechanical assemblies requiring secure fastening
- Industrial machinery and equipment
- Automotive and aerospace components
- Construction and structural applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Stainless steel material offers long service life reducing replacement frequency
- RoHS-compliant ensuring no hazardous substances are used
Warranty Information
Wurth provides a standard warranty against manufacturing defects. Please refer to Wurth's warranty policy for detailed terms.
Available Now
Wurth Hexagon Socket Head Cap Screws are available for immediate purchase, ideal for industrial, mechanical, and construction fastening applications.
