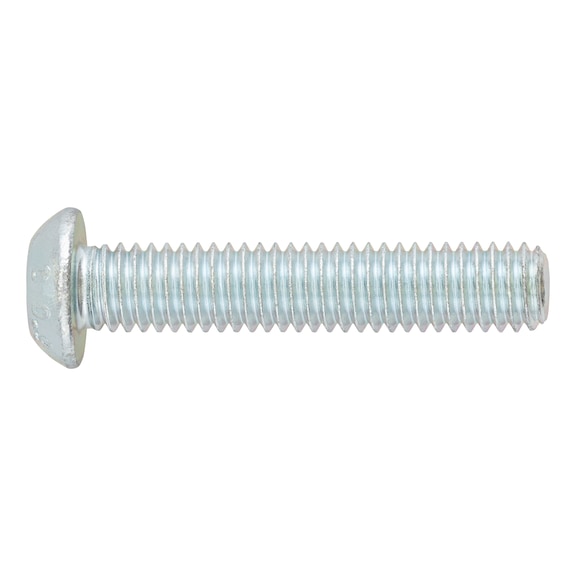

Hexagon Socket Screw ISO 7380-1 | Steel 010.9 | Zinc-Plated Blue Passivated | Button Head Design | @Pack of 25 | by Wurth
Hexagon socket screw ISO 7380-1 made from high-strength Steel 010.9, featuring a zinc-plated blue passivated finish for enhanced corrosion resistance. Ideal for general mechanical fastening and electronics assembly, this button head design ensures secure tightening, making it perfect for automotive and machinery applications requiring limited load screws.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Socket Screw ISO 7380-1 | Steel 010.9 | Zinc-Plated Blue Passivated | Button Head Design | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 6001420
Alternatively Known As: Hex Socket Button Head Screw, ISO 7380-1 Screw, Zinc Plated Hexagon Socket Screw
Technical Specifications
- Thread type x nominal diameter (d1): M4
- Length (l1): 20 mm
- Head diameter (dk): 7.6 mm
- Head height (k1): 2.2 mm
- Standards: ISO 7380-1
- Material: Steel
- Property class: 010.9
- Surface: Zinc plated with blue passivation
- Head type: Button head (flattened half round)
- Drive type: Hexagon socket (HS2.5)
- Thread type: Metric thread
- Thread form: Standard metric thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.2mm x 20mm x 7.6mm
- Weight: 0.01 kg
Key Features
- Steel material with property class 010.9 for high strength
- Zinc plated with blue passivation for corrosion resistance
- Hexagon socket drive for secure tightening
- Button head design with flattened half round shape
- RoHS-compliant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and load application due to limited load capacity of head geometry.
Applications
- General mechanical fastening
- Electronics assembly
- Automotive and machinery applications requiring limited load screws
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation) for electrical fastening applications
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems for workplace safety
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Screw with Flattened Half Round Head and Hexagon Socket ISO 7380-1 Steel 010.9 Zinc-Plated Blue Passivated 25 PCS is available for immediate purchase, ideal for mechanical and electrical fastening requiring corrosion resistance and moderate strength.
