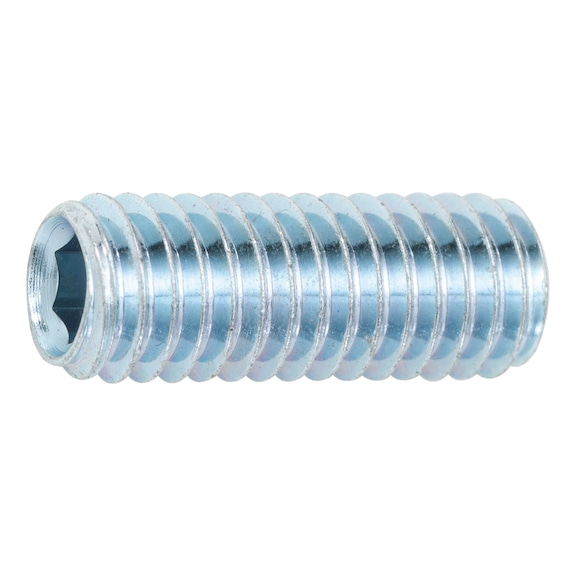

Hexagon Socket Set Screw | Truncated Cone Tip | Zinc-Plated Blue Passivated | @Pack of 25 | by Wurth
Hexagon socket set screw with a truncated cone tip and zinc-plated blue passivated finish—ideal for secure fastening in mechanical assemblies. Built for industrial machinery and automotive applications, this durable screw features a hardness class of 45H, ensuring long-lasting performance and corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Socket Set Screw | Truncated Cone Tip | Zinc-Plated Blue Passivated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 255035
Alternatively Known As: Hex Socket Set Screw, Truncated Cone Set Screw, ISO 4026 Set Screw, Zinc Plated Set Screw, Metric Thread Set Screw
Technical Specifications
- Thread type x nominal diameter (d1): M3
- Length (l1): 5 mm
- Diameter of flat point (d2): 2 mm
- Internal drive (s1): HS1.5
- Standards: ISO 4026
- Material: Steel
- Surface: Zinc plated blue passivated
- Hardness category: 45H (450 HV)
- Drive type: Hexagon socket
- Thread type: Metric thread
- Thread form: Standard metric thread
- Shape of tip: Truncated cone
- RoHS-compliant: Yes
- Dimensions (H x L x W): 5mm x 5mm x 3mm
- Weight: 0.05 kg
Key Features
- Hexagon socket drive for easy installation and removal
- Truncated cone tip shape for precise positioning
- Made from steel with zinc-plated blue passivated surface for corrosion resistance
- Hardness class 45H corresponding to 450 HV for durability
- Complies with ISO 4026 standard replacing DIN 913
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring secure fastening
- Industrial machinery and equipment
- Automotive and aerospace components
- General engineering and maintenance tasks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Zinc plating provides corrosion resistance extending product life and reducing waste
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Wurth Hexagon Socket Set Screw with Truncated Cone ISO 4026 Steel 45H Zinc-Plated Blue Passivated 25 PCS is available for immediate purchase, ideal for industrial and mechanical fastening applications.
