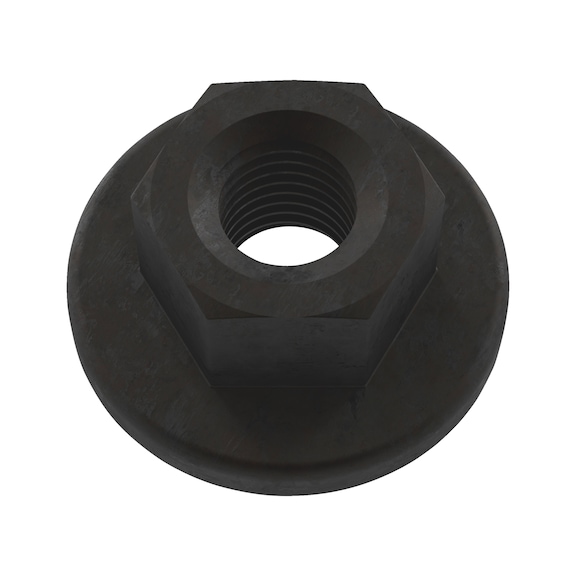

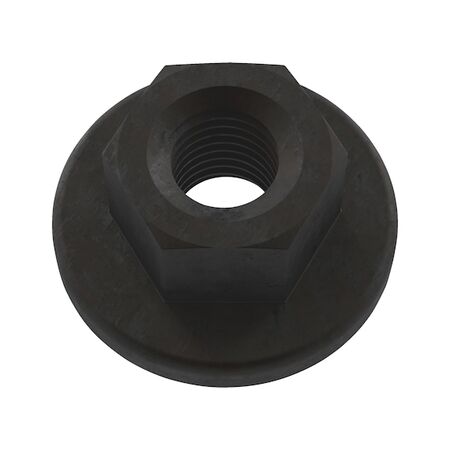

Hexagon Weld Nut with Flange ISO 21670 | M12 Thread | Steel Material | RoHS Compliant | @Pack of 100 | by Wurth
Hexagon Weld Nut with Flange ISO 21670 is designed for secure fastening in metal fabrication and assembly. With an M12 thread and made from durable steel, this nut is RoHS compliant and ideal for automotive, construction, and industrial applications. The flange increases the bearing surface for a reliable weld, ensuring compliance with ISO 21670 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Weld Nut with Flange ISO 21670 | M12 Thread | Steel Material | RoHS Compliant | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 399002012
Alternatively Known As: Hex weld nut, flange weld nut, ISO 21670 weld nut, steel weld nut
Technical Specifications
- Thread type x nominal diameter (D): M12
- Height (h1): 15 mm
- Flange diameter (dc): 30.5 mm
- External drive (s1): WS18
- Flange thickness: 3 mm
- Max. carbon content: 0.25%
- Min./max. material thickness: 1.5-3.0 mm
- Drill hole diameter: 14.8 mm
- Material: Steel
- Surface: Plain
- RoHS-compliant: Yes
- Dimensions (H x L x W): 15mm x 30.5mm x 30.5mm
- Weight: 0.05 kg
Key Features
- Weld nuts suitable for screw mounting with screws of strength classes up to and including 10.9 according to ISO 898-1
- Complies with ISO 21670 standard
- Steel material with plain surface finish
- Flange provides increased bearing surface for secure weld
- RoHS-compliant
Professional Installation Requirements
- Professional welding and installation by qualified personnel is recommended to ensure secure and compliant fastening.
Applications
- Suitable for screw mounting with screws of strength classes up to and including 10.9
- Used in metal fabrication and assembly requiring secure weld nut fastening
- Ideal for automotive, construction, and industrial equipment applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable steel construction promotes long product life and reduces waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Hexagon Weld Nut with Flange ISO 21670 Steel Plain 100 PCS is available for immediate purchase, ideal for industrial and construction fastening applications.
