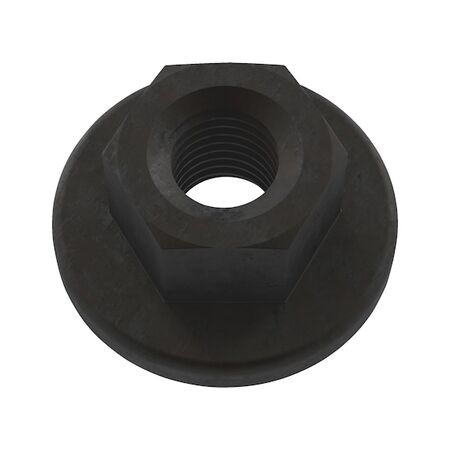

Hexagon Weld Nut with Flange ISO 21670 | M6 Thread | Steel Material | RoHS Compliant | @Pack of 100 | by Wurth
Hexagon weld nut with flange ISO 21670 is designed for secure fastening in metal fabrication and assembly. With a robust M6 thread and made from durable steel, this nut is RoHS compliant, ensuring reduced hazardous substances. Ideal for automotive and structural applications, it provides enhanced load distribution and is suitable for screw mounting with strength classes up to 10.9.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Weld Nut with Flange ISO 21670 | M6 Thread | Steel Material | RoHS Compliant | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 399002006
Alternatively Known As: Hex weld nut, flange weld nut, ISO 21670 weld nut, steel weld nut M6
Technical Specifications
- Thread type x nominal diameter (D): M6
- Height (h1): 7 mm
- Flange diameter (dc): 18.5 mm
- External drive (s1): WS10
- Flange thickness: 2 mm
- Standards: ISO 21670
- Material: Steel
- Surface: Plain
- Max. carbon content: 0.25%
- Min./max. material thickness: 0.88-1.8 mm
- Drill hole diameter: 8 mm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 7mm x 18.5mm x 18.5mm
- Weight: 0.05 kg
Key Features
- Weld nuts conforming to ISO 21670 standard
- Suitable for screw mounting with screws of strength classes up to 10.9 according to ISO 898-1
- Hexagon shape with flange for enhanced load distribution
- Steel material with plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Professional welding and installation by qualified personnel is recommended to ensure secure and compliant fastening.
Applications
- Suitable for screw mounting with screws of strength classes up to and including 10.9
- Used in metal fabrication and assembly requiring secure weld nut fastening
- Ideal for automotive, machinery, and structural steel applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable steel construction promotes long product life and reduces waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Hexagon Weld Nut with Flange ISO 21670 steel plain M6 100 PCS is available for immediate purchase, ideal for industrial and structural applications.
