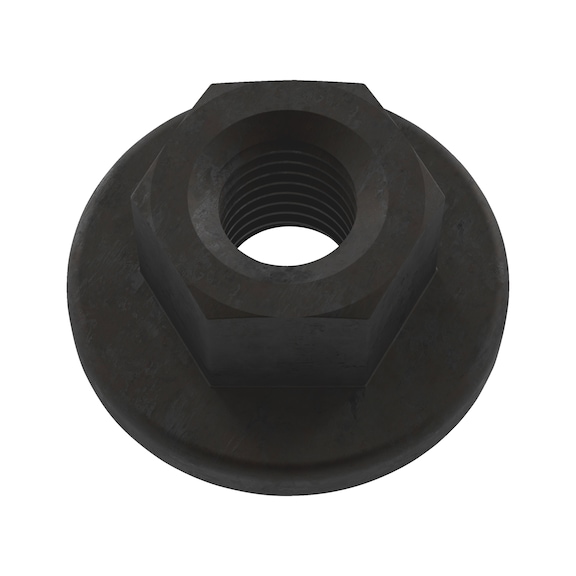

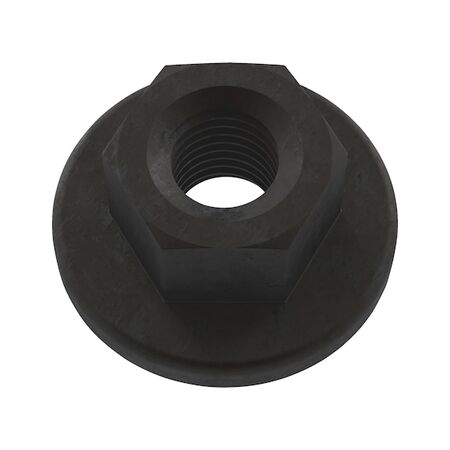

Hexagon Weld Nut with Flange ISO 21670 | M8 Thread | Steel Construction | RoHS Compliant | @Pack of 100 | by Wurth
Hexagon weld nut with flange ISO 21670 is designed for secure screw mounting with M8 threads, made from durable steel and compliant with RoHS standards. Ideal for automotive, machinery, and structural steel applications, this pack of 100 ensures reliable fastening in metal fabrication and assembly projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Weld Nut with Flange ISO 21670 | M8 Thread | Steel Construction | RoHS Compliant | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 399002008
Alternatively Known As: Hex weld nut, flange weld nut, M8 weld nut, steel weld nut, ISO 21670 weld nut
Technical Specifications
- Thread type x nominal diameter (D): M8
- Height (h1): 10 mm
- Flange diameter (dc): 22.5 mm
- External drive (s1): WS13
- Flange thickness: 2.5 mm
- Max. carbon content: 0.25%
- Min./max. material thickness: 1.0-2.0 mm
- Drill hole diameter: 10.5 mm
- Material: Steel
- Surface: Plain
- RoHS-compliant: Yes
- Dimensions (H x L x W): 10mm x 22.5mm x 22.5mm
- Weight: 0.05 kg
Key Features
- Weld nuts suitable for screw mounting with screws of strength classes up to and including 10.9 according to ISO 898-1
- Compliant with ISO 21670 standard
- Made of steel with plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Professional welding and installation by qualified personnel is recommended to ensure secure and compliant fastening.
Applications
- Suitable for screw mounting with screws of strength classes up to and including 10.9
- Used in metal fabrication and assembly requiring secure weld nut fastening
- Ideal for automotive, machinery, and structural steel applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable steel construction promotes long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Hexagon Weld Nut with Flange ISO 21670 Steel Plain M8 100 PCS is available for immediate purchase, ideal for industrial and structural applications.
