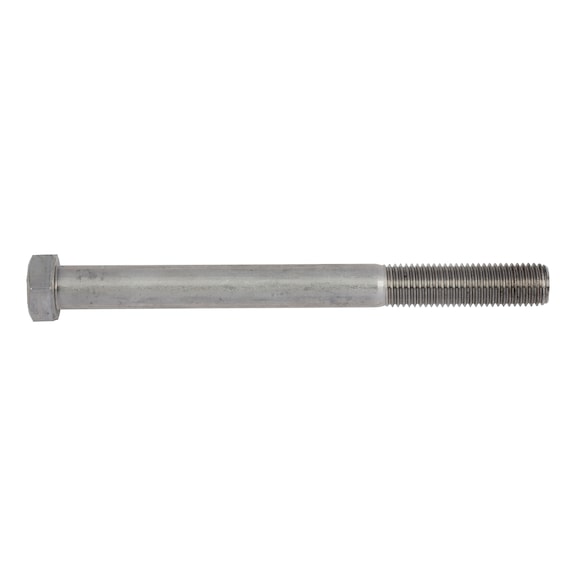

Hexagonal Bolt ASME B18.2.1 | 1/4 Inch Diameter | 18-8 Stainless Steel | Plain Finish | @Pack of 25 | by Wurth
Hexagonal Bolt ASME B18.2.1 with a 1/4 inch diameter and 18-8 stainless steel construction is perfect for mechanical assemblies and industrial applications. Designed for durability, this bolt features a plain finish and complies with ASME standards, ensuring reliable performance in corrosion-resistant environments. Ideal for construction, automotive, and marine uses, it’s a must-have for professionals seeking quality fasteners.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Bolt ASME B18.2.1 | 1/4 Inch Diameter | 18-8 Stainless Steel | Plain Finish | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7003314150
Alternatively Known As: Hex bolt, stainless steel hex bolt, 1/4 inch hex bolt, UNC hex bolt, stainless fastener
Technical Specifications
- Nominal diameter: 1/4 inch
- Length: 1-1/2 inch
- Thread type: UNC
- Head height: 0.163 inch
- External drive: WS7/16
- Material: Stainless steel AISI 304, 18-8
- Surface finish: Plain
- Width across flats: 7/16 inch
- Thread length based on ASME B18.2.1
- Mechanical properties based on ASTM F593
- Dimensions (H x L x W): 39mm x 39mm x 11mm
- Weight: 0.05 kg
Key Features
- Thread length based on ASME B18.2.1 standard
- Material: 18-8 stainless steel (AISI 304), comparable to A2 stainless steel
- Mechanical properties based on ASTM F593
- Plain surface finish
- Nominal diameter: 1/4 inch
- Length: 1-1/2 inch
- Thread type: UNC
- Head height: 0.163 inch
- Width across flats: 7/16 inch
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and fastening standards are met.
Applications
- Mechanical assemblies requiring corrosion-resistant fasteners
- Industrial equipment and machinery
- Construction and structural applications
- Automotive and marine applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Corrosion resistance extends product life, reducing replacement frequency and waste
- Made from recyclable stainless steel material
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Wurth Hexagonal Bolt ASME B18.2.1 Plain 18-8 Stainless Steel 25 PCS is available for immediate purchase, ideal for industrial, mechanical, and construction applications.
