Hexagonal Bolt ASME B18.2.1 | 18-8 Stainless Steel | Full Thread Design | Hexagon Head | @Pack of 5 | by Wurth
Hexagonal Bolt ASME B18.2.1 made from durable 18-8 stainless steel features a full thread design and hexagon head for easy installation. Ideal for mechanical assemblies, automotive, and industrial applications, this bolt ensures corrosion resistance and longevity, making it a reliable choice for construction and maintenance projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Bolt ASME B18.2.1 | 18-8 Stainless Steel | Full Thread Design | Hexagon Head | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 7009350250
Alternatively Known As: Hex bolt, Hex head bolt, Stainless steel hex bolt, UNC hex bolt, 18-8 stainless steel bolt

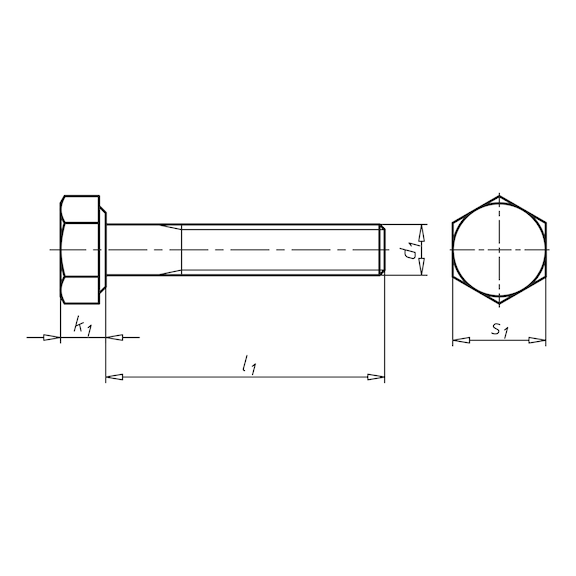

Technical Specifications
- Nominal diameter: 1/2 inch
- Length: 2-1/2 inch (63 mm)
- Width across flats: 3/4 inch (19 mm)
- External drive: WS3/4
- Material: Stainless steel AISI 304, 18-8
- Surface finish: Plain
- Head type: Hexagon head
- Thread type: UNC
- Thread length deviates from ASME B18.2.1 standard to head
- Mechanical properties based on ASTM F593
- Dimensions (H x L x W): 63mm x 63mm x 19mm
- Weight: 0.05 kg
Key Features
- Thread length deviates from standard ASME B18.2.1 to head
- Full thread (FT) design
- Made from 18-8 stainless steel (AISI 304), comparable with A2 stainless steel
- Mechanical properties based on ASTM F593
- Hexagon head for easy wrenching
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and fastening.
Applications
- Mechanical assemblies requiring corrosion-resistant fasteners
- Industrial equipment and machinery
- Automotive and aerospace applications
- General construction and maintenance
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Corrosion resistance extends product life, reducing replacement frequency and waste
- Made from recyclable stainless steel material
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth Hexagonal Bolt with thread up to the head is available now for immediate purchase. Ideal for industrial, automotive, and construction applications requiring durable stainless steel fasteners.
