Hexagonal Bolt ASME B18.2.1 | 316 Stainless Steel | Full Thread Design | Corrosion Resistant | @Pack of 25 | by Wurth
Hexagonal Bolt ASME B18.2.1 made from 316 stainless steel with a full thread design is perfect for industrial machinery assembly and construction applications. Its corrosion-resistant properties make it ideal for marine and chemical environments, ensuring durability and longevity in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Bolt ASME B18.2.1 | 316 Stainless Steel | Full Thread Design | Corrosion Resistant | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7010314125
Alternatively Known As: Hex bolt, Hex head bolt, Stainless steel bolt, UNC bolt, Full thread bolt

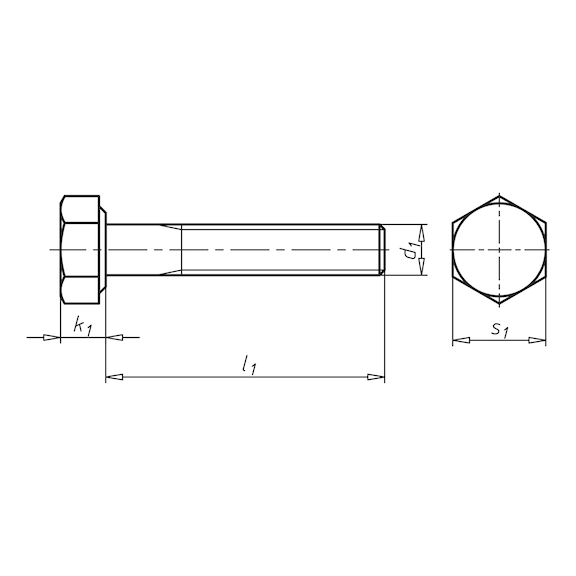

Technical Specifications
- Nominal diameter: 1/4 inch
- Length: 1-1/4 inch
- Width across flats: 7/16 inch
- External drive: WS7/16
- Material: Stainless steel AISI 316
- Surface finish: Plain
- Head type: Hexagon head
- Thread type: UNC
- Thread length deviates from ASME B18.2.1 standard
- Mechanical properties based on ASTM F593
- Dimensions (H x L x W): 31mm x 32mm x 11mm
- Weight: 0.05 kg
Key Features
- Thread length deviates from standard ASME B18.2.1 to head
- Full thread design
- Made from corrosion-resistant stainless steel AISI 316
- Hexagon head for easy wrenching
- Complies with mechanical properties based on ASTM F593
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and fastening integrity.
Applications
- Industrial machinery assembly
- Marine and chemical environments requiring corrosion resistance
- Construction and structural fastening
- General mechanical fastening applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- 316 stainless steel offers excellent corrosion resistance, reducing replacement frequency and waste
- Durable material extends product life, minimizing environmental impact
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for industrial, marine, and construction fastening applications.
