Hexagonal Bolt ASME B18.2.1 | 316 Stainless Steel | Full Thread Length | Hexagon Head Design | @Pack of 25 | by Wurth
Hexagonal Bolt ASME B18.2.1 made from 316 stainless steel with a full thread length and hexagon head design—ideal for industrial, marine, and construction applications. This corrosion-resistant bolt ensures secure fastening and is perfect for automotive and mechanical repairs, providing durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Bolt ASME B18.2.1 | 316 Stainless Steel | Full Thread Length | Hexagon Head Design | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7010314075
Alternatively Known As: Hex bolt, Hex head bolt, Stainless steel hex bolt, UNC hex bolt, 316 stainless bolt

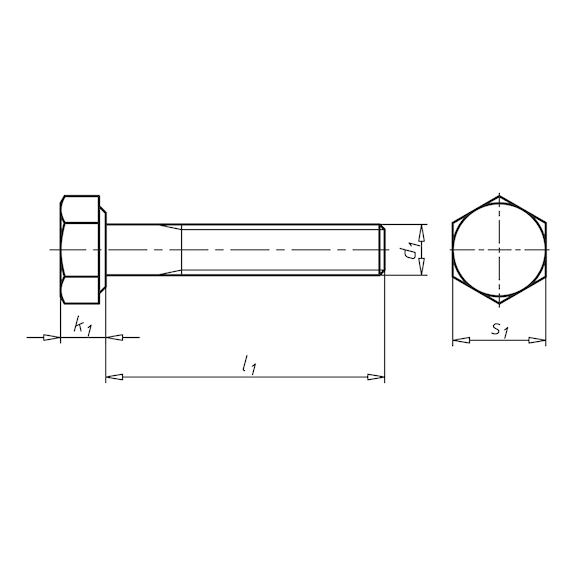

Technical Specifications
- Nominal diameter: 1/4 inch
- Length: 3/4 inch
- Width across flats: 7/16 inch
- External drive: WS7/16
- Material: Stainless steel AISI 316
- Surface finish: Plain
- Head type: Hexagon head
- Thread type: UNC
- Mechanical properties based on ASTM F593
- Dimensions (H x L x W): 19mm x 19mm x 11mm
- Weight: 0.02 kg
Key Features
- Full thread length deviates from standard ASME B18.2.1 to head
- Made from corrosion-resistant 316 stainless steel, comparable to A4 stainless steel
- Mechanical properties based on ASTM F593
- Hexagon head design for easy wrenching with WS7/16 external drive
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper torque and secure fastening.
Applications
- Industrial machinery assembly
- Marine and corrosion-resistant applications
- Construction and structural fastening
- Automotive and mechanical repairs
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- 316 stainless steel offers excellent corrosion resistance, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for industrial, marine, and construction fastening applications.
