Hexagonal Bolt ASME B18.2.1 | 316 Stainless Steel | UNC Thread | Corrosion-Resistant | @Pack of 10 | by Wurth
Hexagonal Bolt ASME B18.2.1 made from corrosion-resistant 316 stainless steel is perfect for industrial, marine, and construction applications. With UNC threading and a plain surface finish, this bolt ensures compatibility and durability in harsh environments. Ideal for professionals seeking reliable fastening solutions, it meets ASTM F593 standards for mechanical properties.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Bolt ASME B18.2.1 | 316 Stainless Steel | UNC Thread | Corrosion-Resistant | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 7004314400
Alternatively Known As: Hex bolt, stainless steel hex bolt, UNC hex bolt, marine grade bolt, A4 stainless bolt

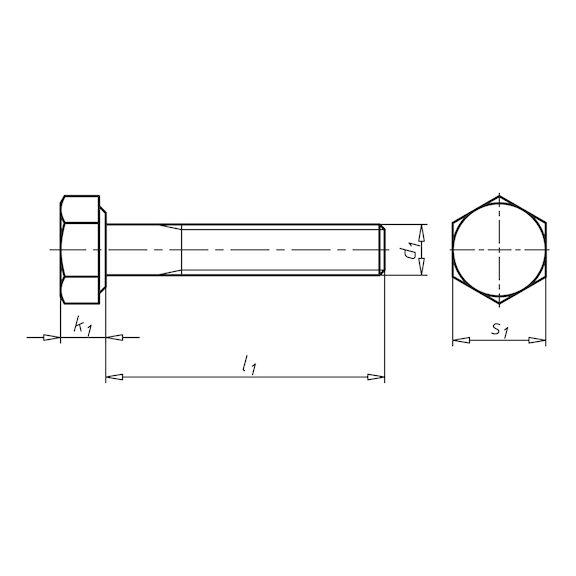

Technical Specifications
- Nominal diameter: 1/4 inch
- Length: 4 inch
- Thread type: UNC
- Head height: 0.163 inch
- Width across flats: 7/16 inch
- Material: Stainless steel AISI 316
- Surface finish: Plain
- Mechanical properties based on ASTM F593
- Dimensions (H x L x W): 104mm x 104mm x 11mm
- Weight: 0.05 kg
Key Features
- Made from corrosion-resistant stainless steel AISI 316 (comparable to A4 stainless steel).
- Thread length and dimensions based on ASME B18.2.1 standard.
- Mechanical properties conform to ASTM F593.
- UNC thread type for compatibility with inch-based fasteners.
- Plain surface finish.
Professional Installation Requirements
- Installation by qualified personnel using appropriate tools is recommended to ensure proper torque and fastening integrity.
Applications
- Industrial machinery assembly
- Marine and chemical environments requiring corrosion resistance
- Construction and structural fastening
- General mechanical fastening applications
Standards & Compliance
- Complies with AS/NZS 4762 for stainless steel fasteners (equivalent to ASTM F593 mechanical properties).
Environmental Benefits
- Long-lasting corrosion resistance reduces need for frequent replacements, minimizing waste.
- Stainless steel material is recyclable.
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Hexagonal Bolt ASME B18.2.1 plain 316 stainless steel UNC 10 PCS is available for immediate purchase, ideal for industrial, marine, and construction fastening applications.
