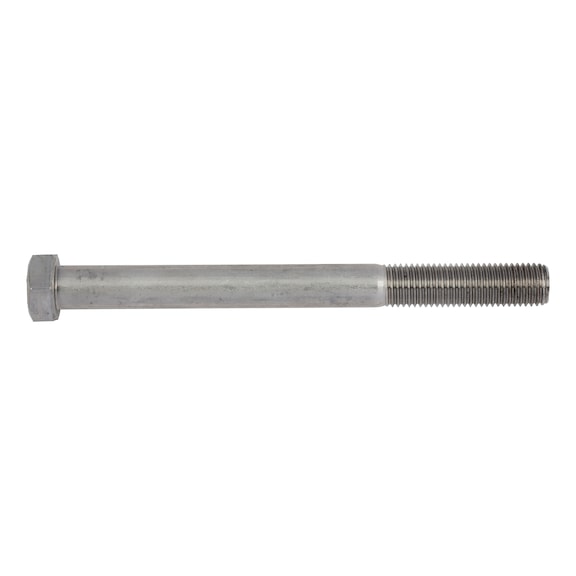

Hexagonal Bolt ASME B18.2.1 | 316 Stainless Steel | UNC Thread | Plain Finish | @Pack of 10 | by Wurth
Hexagonal Bolt ASME B18.2.1 made from corrosion-resistant 316 stainless steel with UNC threading is perfect for industrial, marine, and construction applications. Designed for durability and compliance with ASME standards, this bolt ensures secure fastening in challenging environments, making it an essential choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Bolt ASME B18.2.1 | 316 Stainless Steel | UNC Thread | Plain Finish | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 7004314250
Alternatively Known As: Hex bolt, stainless steel hex bolt, UNC hex bolt, 316 stainless bolt, A4 stainless steel bolt
Technical Specifications
- Nominal diameter: 1/4 inch
- Length: 2-1/2 inch (64 mm)
- Thread type: UNC
- Head height: 0.163 inch (4.14 mm)
- External drive size: 7/16 inch (11 mm)
- Material: Stainless steel AISI 316
- Surface finish: Plain
- Width across flats: 7/16 inch (11 mm)
- Dimensions (H x L x W): 6mm x 64mm x 11mm
- Weight: 0.05 kg
Key Features
- Made from corrosion-resistant stainless steel AISI 316 (comparable to A4 stainless steel).
- Thread length and dimensions conform to ASME B18.2.1 standard.
- Mechanical properties based on ASTM F593 standard.
- UNC thread type for compatibility with inch-based fasteners.
- Plain surface finish for versatile use.
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and secure fastening.
Applications
- Industrial machinery assembly
- Marine and chemical environments requiring corrosion resistance
- Construction and structural applications
- General fastening in automotive and equipment manufacturing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation) for electrical fastening applications
- Complies with AS/NZS 1170 – Structural Design Actions for construction and structural use
Environmental Benefits
- 316 stainless steel offers excellent corrosion resistance, reducing the need for frequent replacements and minimizing waste.
- Durable material extends product life, supporting sustainability.
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Wurth Hexagonal Bolt ASME B18.2.1 plain 316 stainless steel UNC 10 PCS is available for immediate purchase, ideal for industrial, marine, and construction applications.
