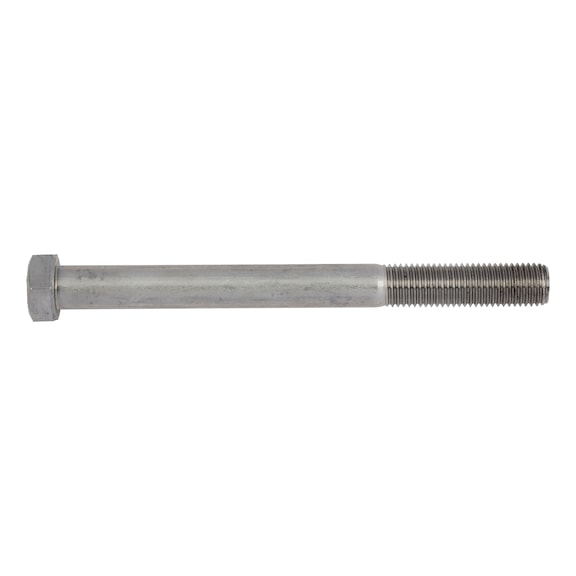

Hexagonal Bolt ASME B18.2.1 | 316 Stainless Steel | UNC Thread | Plain Finish | @Pack of 10 | by Wurth
Hexagonal Bolt ASME B18.2.1 made from corrosion-resistant 316 stainless steel with UNC threading is perfect for industrial machinery assembly and construction. Designed for marine and chemical environments, this bolt ensures durability and reliability in demanding applications, making it an essential choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Bolt ASME B18.2.1 | 316 Stainless Steel | UNC Thread | Plain Finish | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 7004314300
Alternatively Known As: Hex bolt, Stainless steel hex bolt, UNC hex bolt, 316 stainless bolt, A4 stainless steel bolt
Technical Specifications
- Nominal diameter: 1/4 inch
- Length: 3 inch (76 mm)
- Thread type: UNC
- Head height: 0.163 inch
- Width across flats: 7/16 inch (11 mm)
- Material: Stainless steel AISI 316
- Surface finish: Plain
- Mechanical properties based on ASTM F593
- Dimensions (H x L x W): 8mm x 76mm x 11mm
- Weight: 0.05 kg
Key Features
- Made from corrosion-resistant stainless steel AISI 316 (comparable to A4 stainless steel).
- Thread length and dimensions based on ASME B18.2.1 and ASME B18.2.11 standards.
- Mechanical properties conform to ASTM F593.
- UNC thread type for compatibility with inch-based fasteners.
- Plain surface finish.
Professional Installation Requirements
- Installation by qualified personnel using appropriate tools is recommended to ensure proper fastening and safety.
Applications
- Industrial machinery assembly
- Marine and chemical environments requiring corrosion resistance
- Construction and structural fastening
- General mechanical fastening applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- 316 stainless steel offers excellent corrosion resistance, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth Hexagonal Bolt ASME B18.2.1 Plain 316 Stainless Steel UNC 10 PCS is available for immediate purchase, ideal for industrial, marine, and construction applications.
