Hexagonal Bolt ASME B18.2.1 Trivalent Blue Zinc Plated GR8 Steel Variant-2 Wurth

BRAND: Wurth
SKU: 7002916900
$39.20 List price: $49.30
1 PCS ($39.20 per PCS)
+ −
30 Days Return Electricians Unlock Trade Access
Hexagonal Bolt ASME B18.2.1 is designed for high-strength fastening in mechanical assemblies, industrial machinery, and automotive applications.

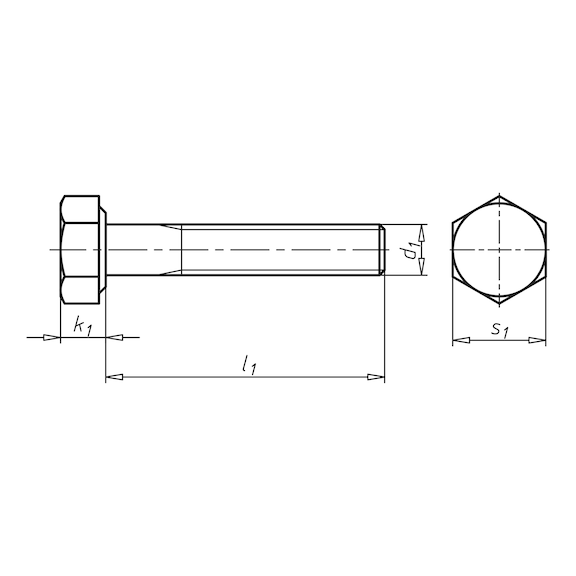

Technical Specifications
  • Nominal diameter: 1 inch
  • Length: 9 inches
  • Thread type: UNC
  • Head height: 0.627 inches
  • External drive: WS1 1/2
  • Material: Steel
  • Property class: GR8
  • Surface finish: Trivalent blue passivated zinc plated
  • Width across flats: 1 1/2 inch
  • Dimensions (H x L x W): 16mm x 229mm x 38mm
  • Weight: 0.5 kg
Key Features
  • Mechanical properties regulated by SAE J429
  • Thread length based on ASME B18.2.1 standard
  • Standard thread tolerance according to ASME B1.1 = 2A for male thread
  • Trivalent blue passivated zinc plated for corrosion resistance
  • High strength GR8 steel material
Professional Installation Requirements
  • Installation by qualified personnel recommended to ensure proper torque and fastening standards are met.
Applications
  • Mechanical assemblies requiring high-strength fastening
  • Industrial machinery and equipment
  • Automotive and construction applications
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • Zinc plating provides corrosion resistance extending product life and reducing waste
Warranty Information

Warranty against manufacturing defects as per Wurth standard policy.

Available Now

Available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
