Hexagonal Bolt | Grade 8 High Strength | Zinc Plated | UNF Thread | @Pack of 10 | by Wurth
Hexagonal Bolt with Grade 8 high strength and zinc plating — ideal for mechanical assemblies and automotive repairs. Built for industrial applications, this bolt features a UNF thread for precise fastening and corrosion resistance, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Bolt | Grade 8 High Strength | Zinc Plated | UNF Thread | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 7002951150
Alternatively Known As: Hex bolt, Hex head bolt, Grade 8 bolt, Fine thread bolt, UNF hex bolt

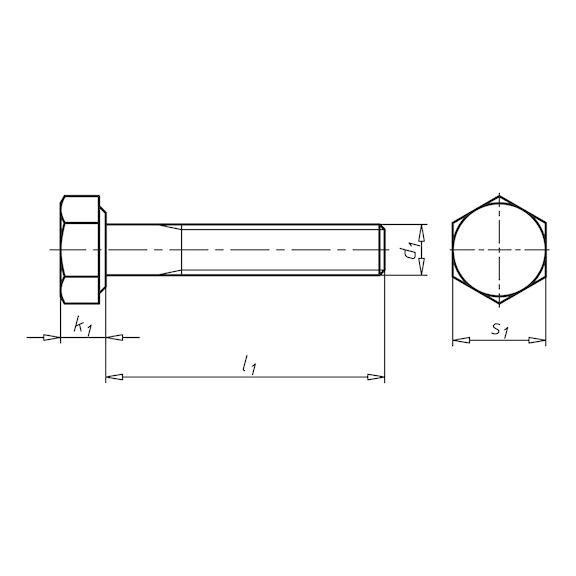

Technical Specifications
- Nominal diameter: 1/2 inch (12.7 mm)
- Length: 1-1/2 inch (38 mm)
- Thread type: UNF (Unified Fine Thread)
- Head height: 0.323 inch (8.2 mm)
- External drive: WS 3/4 inch (19 mm)
- Material: Steel
- Property class: Grade 8
- Surface finish: Zinc plated with blue passivated trivalent coating
- Mechanical properties regulated by SAE J429
- Thread tolerance: 2A (male thread) as per ASME B1.1
- Dimensions (H x L x W): 8.2mm x 38mm x 19mm
- Weight: 0.05 kg
Key Features
- Galvanised steel for corrosion resistance
- Grade 8 high strength material
- Blue passivated trivalent coating
- UNF (fine thread) for precise fastening
- Complies with ASME B18.2.1 and SAE J429 mechanical properties
- Standard thread tolerance 2A according to ASME B1.1
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and fastening standards.
Applications
- Mechanical assemblies requiring high strength fasteners
- Automotive and machinery repairs
- Industrial equipment fastening
- Construction and structural applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Galvanised coating extends product life reducing waste
- Durable steel construction minimizes replacement frequency
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Wurth Hexagonal Bolt 10 PCS is available for immediate purchase, ideal for mechanical, automotive, and industrial fastening applications.
