Hexagonal Bolt ISO 4017 | M3 x 40mm | Full Metric Thread | RoHS Compliant | @Pack of 1000 | by Wurth
Hexagonal Bolt ISO 4017 with M3 x 40mm dimensions and full metric thread design—ideal for mechanical assemblies and electrical equipment. Made from durable polyamide 6.6, this RoHS-compliant bolt ensures secure fastening while being environmentally friendly, making it perfect for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Bolt ISO 4017 | M3 x 40mm | Full Metric Thread | RoHS Compliant | @Pack of 1000 | by Wurth
Brand: Wurth
SKU: 278030340
Alternatively Known As: Polyamide Hex Bolt, Nylon Hex Bolt, PA 6.6 Hex Bolt, ISO 4017 Bolt, Full Thread Hex Bolt

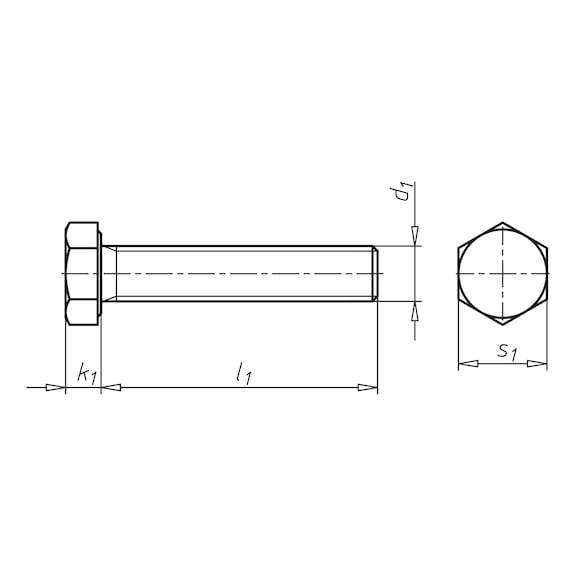

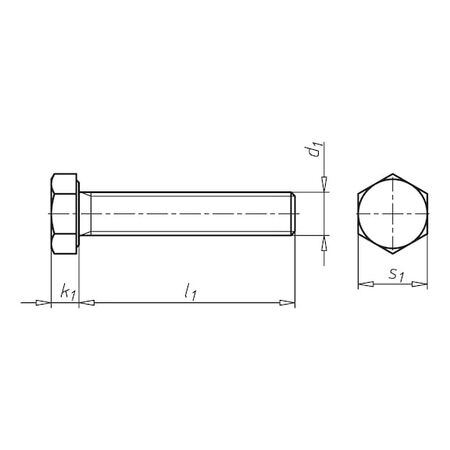

Technical Specifications
- Thread type x nominal diameter (d1): M3
- Length (l1): 40 mm
- Head height (k1): 2 mm
- External drive (s1): WS5.5
- Standards: ISO 4017
- Material: PA - Polyamide
- Property class: PA 6.6
- Surface: Plain
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Full thread
- Product class: B
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2mm x 40mm x 5.5mm
- Weight: 0.02 kg
Key Features
- Hexagon head with outer hexagon drive for easy tightening
- Full metric thread design for secure fastening
- Made from durable polyamide 6.6 material
- RoHS-compliant ensuring environmental safety
- Replaces DIN 933 standard bolts with extended nominal sizes
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical assemblies requiring corrosion-resistant fasteners
- Electrical and electronic equipment assembly
- Lightweight structural fastening in automotive and machinery
- General purpose fastening in industrial and commercial applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Polyamide 6.6 material is lightweight and reduces metal usage
- RoHS compliance ensures no hazardous substances are used
- Durable material extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Hexagonal Bolt ISO 4017 Polyamide 6.6 M3 x 40mm Full Thread is available for immediate purchase, ideal for industrial and mechanical fastening applications.
