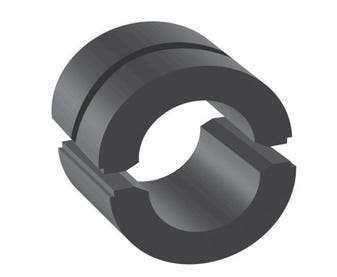

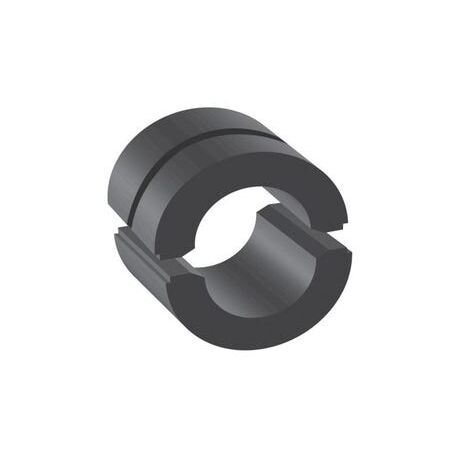

Hexagonal Crimp Die 25.4mm AF for Aluminium Lugs Cabac
Cabac Hexagonal Crimp Die features 25.4mm across flats and aluminium lug profile. Ideal for hydraulic crimping of aluminium lugs and links.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aluminium Hex Crimp Die, C-Style Hydraulic Crimp Die, 12 Tonne Aluminium Crimp Die, CABAC MSS-C130-254AL
Technical Specifications
- Die Type: C-style hexagonal crimp die set
- Across Flats: 25.4 mm
- Material: Aluminium
- Compatible Tool Range: 12 to 13 tonne hydraulic crimpers
- Packaging Unit: 1 set
- Application: Aluminium lugs and links
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 1.5 kg
Key Features
- 25.4 mm across-flats hexagonal crimp profile
- Designed for aluminium lugs and links
- C-style die format for compatible hydraulic crimping heads
- Suitable for the CABAC 12 to 13 tonne tool range
- Supports consistent compression of aluminium electrical connectors
- Interchangeable die set for professional cable termination
Professional Installation Requirements
- Use by suitably trained electrical or utility personnel familiar with hydraulic crimping equipment. Select the die to match the connector manufacturer's specified crimp profile and follow the connector and tool instructions. Electrical terminations should be completed by a licensed electrical worker where required by local regulations.
Applications
- Hydraulic crimping of aluminium cable lugs
- Hydraulic crimping of aluminium links and compression connectors
- Electrical cable termination and jointing
- Utility, industrial and construction power-distribution work
- Overhead-line and aluminium conductor connection work
Standards & Compliance
- For use with compatible aluminium connectors dimensioned for Australian and New Zealand practice; connector selection should be verified against AS/NZS 4325.1 where applicable
- Electrical installations using the completed termination should comply with AS/NZS 3000 where applicable
Environmental Benefits
- Aluminium is recyclable at end of service life
- Durable die construction can support repeated use and reduce replacement waste
- Accurate crimping helps maintain low-resistance electrical connections and minimise avoidable energy losses
Warranty Information
Cabac warranty coverage is subject to the manufacturer's published terms and conditions; no fixed warranty duration was identified for this die set. Australian Consumer Law guarantees apply where applicable. Warranty remedies may be excluded for incorrect installation, misuse or use contrary to product specifications.
Available Now
Available through CABAC and authorised Australian electrical and industrial distributors; availability may vary by distributor.
