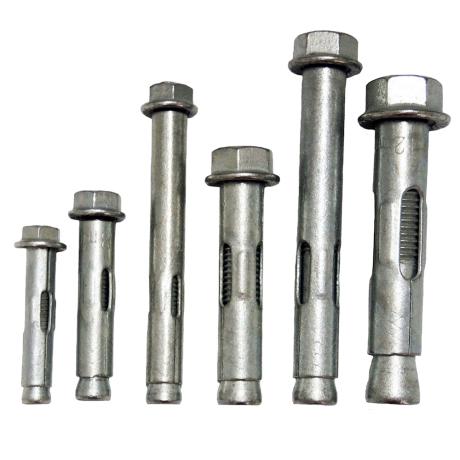

Hexagonal Head Sleeve Bolt Anchor | 10mm Diameter | Heavy Duty Load Anchor | Mechanically Galvanised | @Each by Wattmaster
The Hexagonal Head Sleeve Bolt Anchor is a robust solution for securing heavy loads in concrete and masonry. With a 10mm diameter and 50mm length, this heavy-duty anchor features a hex flanged head for a flush finish and is mechanically galvanised for enhanced corrosion resistance. Ideal for construction and industrial applications, it ensures strong holding power through its expansion and friction design, making installation straightforward and reliable.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Head Sleeve Bolt Anchor | 10mm Diameter | Heavy Duty Load Anchor | Mechanically Galvanised | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCGFBAH1050
Alternatively Known As: Hex Head Sleeve Bolt Anchor, Expansion Sleeve Bolt, Galvanised Sleeve Anchor, Heavy Duty Sleeve Bolt
Technical Specifications
- Diameter: 10mm
- Length: 50mm
- Head Type: Hexagonal flanged head
- Material: Mechanically galvanised steel
- Anchor Type: Expansion and friction anchor
- Finish: Galvanised for corrosion resistance
- Assembly: Fully assembled
- Dimensions (H x L x W): 50mm x 50mm x 10mm
- Weight: 0.15 kg
Key Features
- Hex flanged head for a flush finish
- Heavy duty load anchor suitable for high-stress applications
- Expansion and friction anchor providing strong holding power
- Fully assembled for ease of installation
- Mechanically galvanised for enhanced corrosion resistance
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct anchoring and load capacity compliance.
Applications
- Construction: Securing heavy loads in concrete and masonry
- Industrial: Machinery and equipment anchoring
- General Fixings: Structural and heavy-duty fastening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanised coating extends product life reducing waste and replacement frequency
- Durable design minimizes material consumption over time
Warranty Information
Warranty against manufacturing defects for 1 year under normal use conditions.
Available Now
The Wattmaster Hexagonal Head Sleeve Bolt Anchor 10mm x 50mm is available for immediate purchase, ideal for construction and industrial heavy-duty fastening applications.
