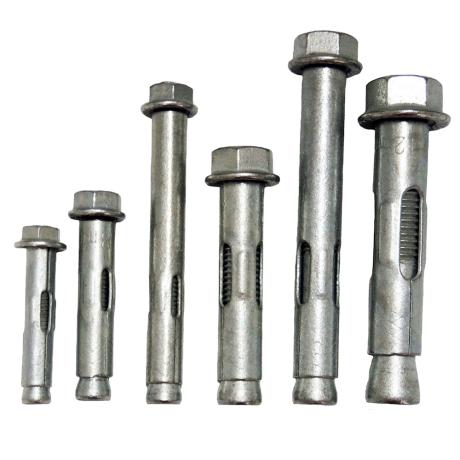

Hexagonal Head Sleeve Bolt Anchor | 8mm Diameter | 65mm Length | Heavy Duty & Corrosion Resistant | @Each by Wattmaster
The Hexagonal Head Sleeve Bolt Anchor is designed for heavy-duty load anchoring in concrete and masonry, featuring an 8mm diameter and 65mm length. With a hex flanged head for a flush finish and mechanically galvanised for corrosion resistance, this anchor is perfect for both structural and non-structural fixings in construction and industrial projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Head Sleeve Bolt Anchor | 8mm Diameter | 65mm Length | Heavy Duty & Corrosion Resistant | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCGFBAH865
Alternatively Known As: Hex Head Sleeve Bolt Anchor, Expansion Sleeve Bolt, Galvanised Sleeve Anchor, Heavy Duty Sleeve Bolt
Technical Specifications
- Diameter: 8mm
- Length: 65mm
- Head Type: Hexagonal flanged head
- Material: Steel with mechanical galvanisation
- Anchor Type: Expansion and friction anchor
- Finish: Mechanically galvanised for corrosion resistance
- Assembly: Fully assembled
- Dimensions (H x L x W): 65mm x 65mm x 8mm
- Weight: 0.15 kg
Key Features
- Hex flanged head for a flush finish
- Heavy duty load anchor
- Expansion and friction anchor
- Fully assembled for ease of installation
- Mechanically galvanised for corrosion resistance
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct anchoring and load capacity compliance.
Applications
- Heavy duty load anchoring in concrete and masonry
- Suitable for structural and non-structural fixings
- Used in construction, industrial, and commercial projects
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanised coating extends product life reducing waste and replacement frequency
- Durable construction minimizes environmental impact through long-term use
Warranty Information
Warranty against manufacturing defects for 1 year under normal use conditions.
Available Now
The Hexagonal Head Sleeve Bolt Anchor 8mm x 65mm by Wattmaster is available for immediate purchase, ideal for heavy duty anchoring in construction and industrial applications.
