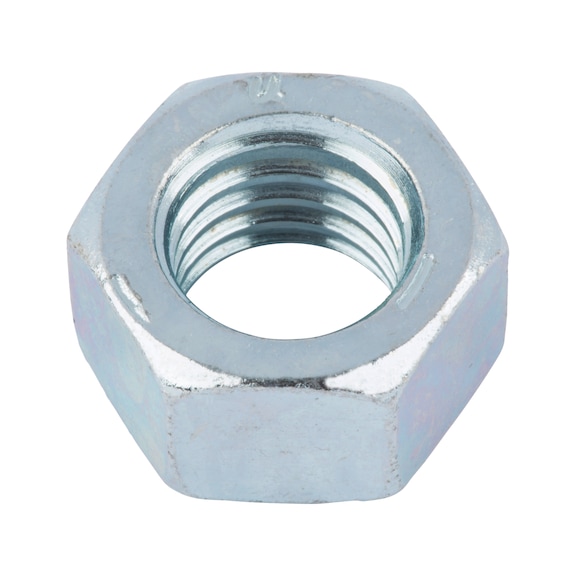

Hexagonal Nut ASME B1822 | Blue Passivated Zinc Plated | GR5 Steel | UNF Fine Thread | @Pack of 25 | by Wurth
Hexagonal Nut ASME B1822 with blue passivated zinc plating and GR5 steel construction — ideal for mechanical assemblies requiring fine thread fastening. Built for automotive and aerospace applications, this nut offers high strength and corrosion resistance, ensuring durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Nut ASME B1822 | Blue Passivated Zinc Plated | GR5 Steel | UNF Fine Thread | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7738038
Alternatively Known As: Hex Nut, Fine Thread Nut, UNF Nut, Zinc Plated Hex Nut, GR5 Steel Nut
Technical Specifications
- Nominal diameter: 3/8 inch (9.525 mm)
- Height: 0.337 inch (8.56 mm)
- Width across flats: 9/16 inch (14.29 mm)
- Material: Steel GR5
- Surface finish: Blue passivated zinc plated
- Thread type: UNF (Unified Fine Thread)
- Threads per inch: 24
- Mechanical properties regulated by SAE J995
- Thread tolerance per ASME B1.1 = 2B (internal thread)
- Dimensions (H x L x W): 8.56mm x 14.29mm x 14.29mm
- Weight: 0.02 kg
Key Features
- Blue passivated zinc plated finish for corrosion resistance
- GR5 steel material for high strength
- UNF fine thread with 24 threads per inch
- Complies with ASME B1822 and SAE J995 mechanical property standards
- Thread tolerance according to ASME B1.1 = 2B for internal thread
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and thread engagement.
Applications
- Mechanical assemblies requiring fine thread fastening
- Automotive and aerospace components
- Industrial machinery and equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste.
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth Hexagonal Nut imperial ASME B1822 blue passivated zinc plated GR5 steel UNF fine thread is available for immediate purchase, ideal for mechanical and industrial fastening applications.
