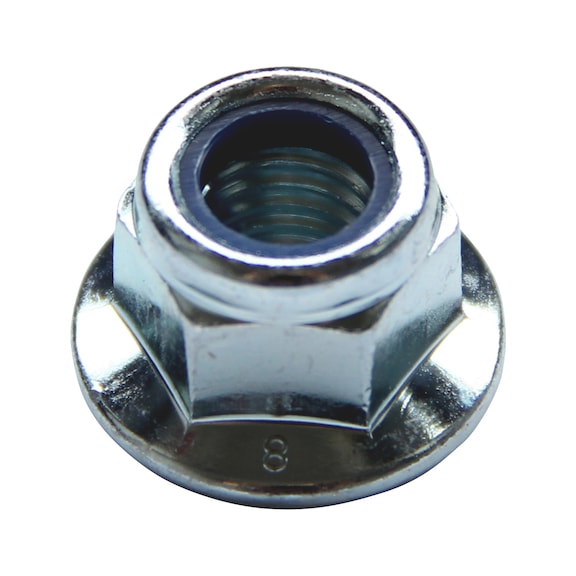

Hexagonal Nut with Flange & Clamping Piece | M10 Thread | Nylon Insert Locking | Blue Passivated Zinc Plated | @Pack of 50 | by Wurth
Hexagonal Nut with Flange & Clamping Piece is designed for secure fastening in mechanical assemblies, featuring an M10 thread and a nylon insert that locks the thread in place. Ideal for automotive and industrial applications, this nut retains its locking ability at temperatures up to 120°C, ensuring a stable connection even under stress.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Nut with Flange & Clamping Piece | M10 Thread | Nylon Insert Locking | Blue Passivated Zinc Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 452610310
Alternatively Known As: Flanged Hex Nut M10, Nylon Insert Lock Nut, Self-Locking Hex Nut, Zinc Plated Hex Nut

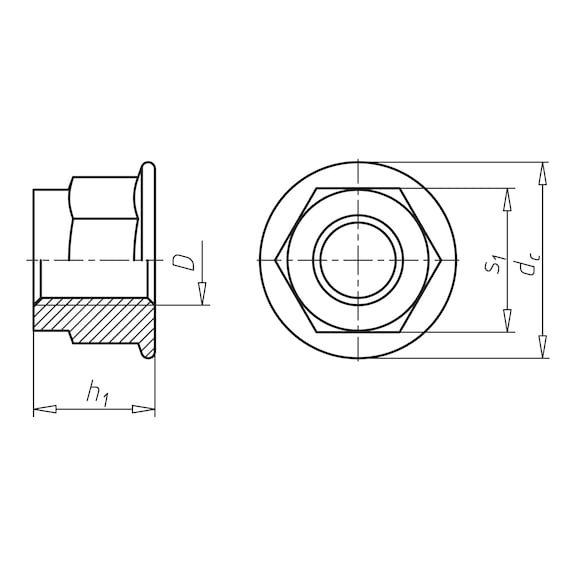

Technical Specifications
- Thread type x nominal diameter: M10
- Height: 13.5 mm
- Flange diameter: 21.8 mm
- External drive: WS16
- Material: Steel
- Property class: 10
- Surface finish: Blue passivated zinc plated
- Standard compliance: EN 1663
- RoHS-compliant: Yes
- Dimensions (H x L x W): 13.5mm x 21.8mm x 21.8mm
- Weight: 0.05 kg
Key Features
- Nylon insert deforms over the bolt thread, locking the thread into place
- Retains locking ability at temperatures up to 120°C
- Wide flange acts as an integrated washer distributing load over a wider area
- Provides a stable and secure connection
- Strength class 10 steel with blue passivated zinc plating for corrosion resistance
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive and machinery applications
- Industrial equipment and construction
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
