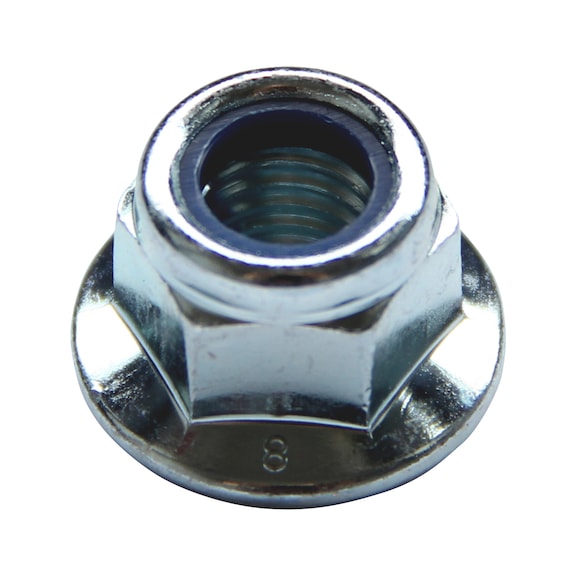

Hexagonal Nut with Flange & Clamping Piece | Nylon Insert Lock | Blue Passivated Zinc Plated | @Pack of 50 | by Wurth
Hexagonal Nut with Flange & Clamping Piece features a nylon insert lock that deforms over the bolt thread, ensuring a secure connection. Ideal for mechanical assemblies in automotive and industrial applications, this nut retains its locking ability at temperatures up to 120°C, providing durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Nut with Flange & Clamping Piece | Nylon Insert Lock | Blue Passivated Zinc Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 452610212
Alternatively Known As: Flanged Hex Nut, Nylon Insert Lock Nut, Self-Locking Hex Nut, EN 1663 Nut

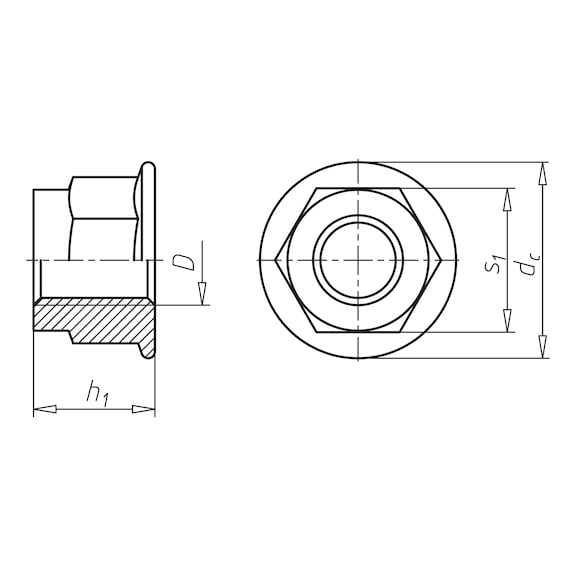

Technical Specifications
- Thread type x nominal diameter: M12
- Height: 16.1 mm
- Flange diameter: 26 mm
- External drive size: WS18
- Material: Steel
- Property class: 8
- Surface finish: Blue passivated zinc plated
- Standard compliance: EN 1663
- RoHS-compliant: Yes
- Dimensions (H x L x W): 16.1mm x 26mm x 18mm
- Weight: 0.05 kg
Key Features
- Nylon insert deforms over bolt thread, locking the thread into place
- Retains locking ability at temperatures up to 120°C
- Wide flange acts as an integrated washer distributing load over a wider area
- Provides a stable and secure connection
- Strength class 8 steel with blue passivated zinc plating for corrosion resistance
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive and machinery applications
- Industrial equipment and construction
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Hexagonal Nut with flange and clamping piece is available for immediate purchase, ideal for industrial and mechanical fastening applications.
