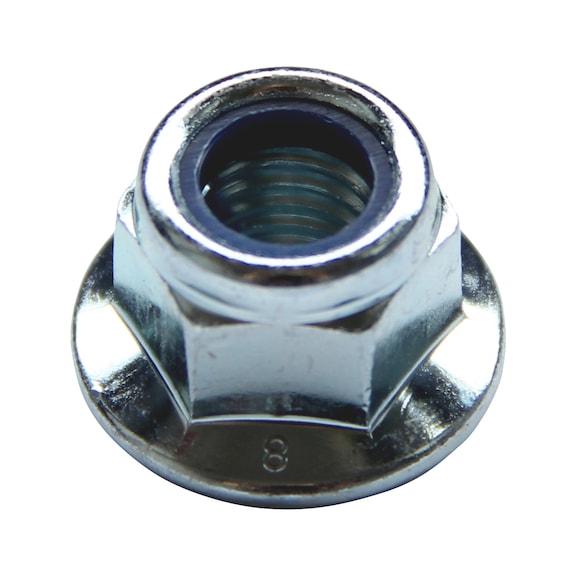

Hexagonal Nut with Flange & Clamping Piece | Nylon Insert | Strength Class 10 Steel | Blue Passivated Zinc Plated | @Pack of 50 | by Wurth
Hexagonal Nut with Flange & Clamping Piece features a nylon insert that deforms over the bolt thread, ensuring a secure lock even at temperatures up to 120°C. Ideal for mechanical fastening in automotive, machinery, and construction applications, this nut provides a stable connection and is RoHS-compliant, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Nut with Flange & Clamping Piece | Nylon Insert | Strength Class 10 Steel | Blue Passivated Zinc Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 45261038
Alternatively Known As: Flanged Nylon Insert Lock Nut, Self-Locking Hex Nut, EN 1663 Nut, Zinc Plated Lock Nut
Technical Specifications
- Thread type x nominal diameter (D): M8
- Height (h1): 11.1 mm
- Flange diameter (dc): 17.9 mm
- External drive (s1): WS13
- Material: Steel
- Property class: 10
- Surface: Zinc plated
- RoHS-compliant: Yes
- Dimensions (H x L x W): 11.1mm x 17.9mm x 13mm
- Weight: 0.05 kg
Key Features
- Nylon insert deforms over bolt thread to lock thread in place
- Retains locking ability at temperatures up to 120°C
- Wide flange acts as integrated washer distributing load over a wider area
- Provides stable and secure connection
- Strength class 10 steel with blue passivated zinc plating for corrosion resistance
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and secure fastening.
Applications
- Mechanical fastening in automotive, machinery, and construction
- Use in assemblies requiring vibration resistance and secure locking
- Suitable for applications exposed to temperatures up to 120°C
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Available for immediate purchase, ideal for mechanical fastening applications requiring secure locking and vibration resistance.
