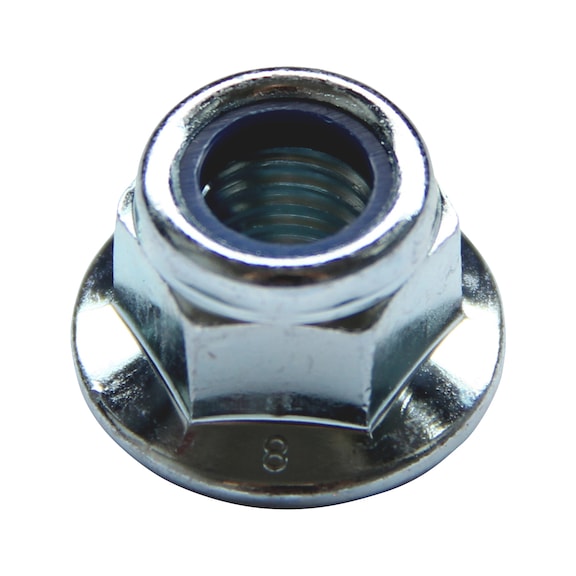

Hexagonal Nut with Flange | Nylon Insert | Blue Passivated Zinc Plated | @Pack of 50 | by Wurth
Hexagonal Nut with Flange featuring a nylon insert and blue passivated zinc plating is perfect for mechanical assemblies requiring secure fastening. Designed for automotive and industrial applications, this nut retains its locking ability at temperatures up to 120°C, ensuring a stable and secure connection in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Nut with Flange | Nylon Insert | Blue Passivated Zinc Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 45261028
Alternatively Known As: Flanged Hex Nut M8, Nylon Insert Nut, Lock Nut with Flange, EN 1663 Nut

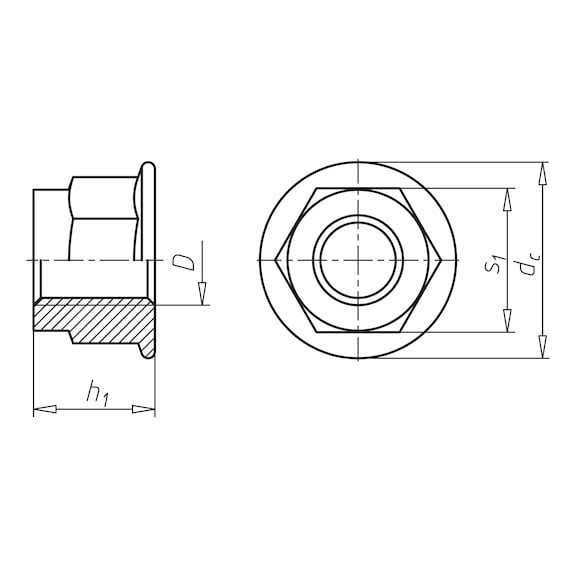

Technical Specifications
- Thread type x nominal diameter: M8
- Height: 11.1 mm
- Flange diameter: 17.9 mm
- External drive: WS13
- Material: Steel
- Property class: 8
- Surface finish: Zinc plated
- RoHS-compliant: Yes
- Dimensions (H x L x W): 11.1mm x 17.9mm x 13mm
- Weight: 0.05 kg
Key Features
- Nylon insert deforms over bolt thread, locking the thread into place
- Retains locking ability at temperatures up to 120°C
- Wide flange acts as an integrated washer
- Load distributed across a wider area for stable and secure connection
- Strength class 8 steel with blue passivated zinc plating
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive and machinery applications
- Industrial equipment and construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Available for immediate purchase, ideal for mechanical, automotive, and industrial fastening applications.
