Hexagonal Nut with Flange | Nylon Insert | Blue Passivated Zinc Plated | @Pack of 50 | by Wurth
Hexagonal Nut with Flange featuring a nylon insert and blue passivated zinc plating is perfect for mechanical assemblies requiring secure fastening. Designed for automotive and industrial applications, it retains locking ability at temperatures up to 120°C, ensuring a stable connection even in high-vibration environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Nut with Flange | Nylon Insert | Blue Passivated Zinc Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 45261025
Alternatively Known As: Flanged Nylon Insert Nut, Lock Nut with Flange, Self-locking Hex Nut M5

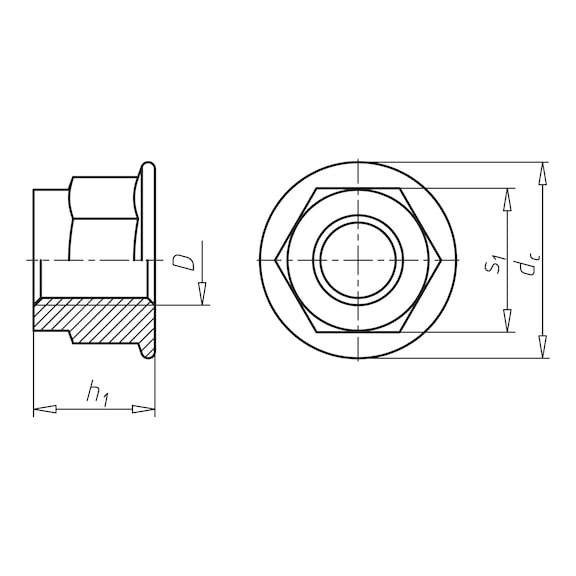

Technical Specifications
- Thread type x nominal diameter (D): M5
- Height (h1): 7.1 mm
- Flange diameter (dc): 11.8 mm
- External drive (s1): WS8
- Material: Steel
- Property class: 8
- Surface: Zinc plated
- RoHS-compliant: Yes
- Dimensions (H x L x W): 7.1mm x 11.8mm x 8mm
- Weight: 0.02 kg
Key Features
- Nylon insert deforms over bolt thread, locking the thread into place
- Retains locking ability at temperatures up to 120°C
- Wide flange acts as an integrated washer distributing load over a wider area
- Provides a stable and secure connection
- Strength class 8 steel with blue passivated zinc plating for corrosion resistance
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive and machinery applications
- General industrial use where vibration resistance is needed
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for industrial, automotive, and mechanical fastening applications.
