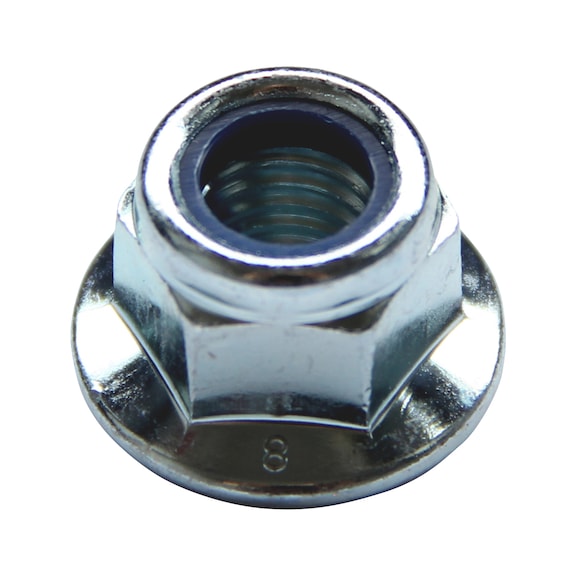

Hexagonal Nut with Flange | Nylon Insert Locking | Blue Passivated Zinc Plated | @Pack of 50 | by Wurth
Hexagonal Nut with Flange featuring a nylon insert locking mechanism and blue passivated zinc plating—ideal for mechanical fastening in machinery and automotive assemblies. Designed for secure locking, it retains its locking ability at temperatures up to 120°C, making it perfect for applications requiring vibration-resistant fasteners.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Nut with Flange | Nylon Insert Locking | Blue Passivated Zinc Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 45261036
Alternatively Known As: Flanged Hex Nut, Nylon Insert Lock Nut, Self-locking Hex Nut, EN 1663 Nut
Technical Specifications
- Thread type x nominal diameter (D): M6
- Height (h1): 9.1 mm
- Flange diameter (dc): 14.2 mm
- External drive (s1): WS10
- Material: Steel
- Property class: 10
- Surface: Zinc plated
- RoHS-compliant: Yes
- Dimensions (H x L x W): 9.1mm x 14.2mm x 10mm
- Weight: 0.05 kg
Key Features
- Nylon insert deforms over bolt thread, locking the thread into place
- Retains locking ability at temperatures up to 120°C
- Wide flange acts as an integrated washer distributing load over a wider area
- Strength class 10 steel with blue passivated zinc plating for corrosion resistance
- Complies with EN 1663 standard replacing DIN 6926
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and secure fastening.
Applications
- Mechanical fastening in machinery and automotive assemblies
- Industrial equipment requiring secure locking nuts
- Applications needing vibration-resistant fasteners
Standards & Compliance
- Complies with AS/NZS 4762 for high strength structural bolts and nuts
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Available for immediate purchase, ideal for industrial and mechanical fastening applications.
