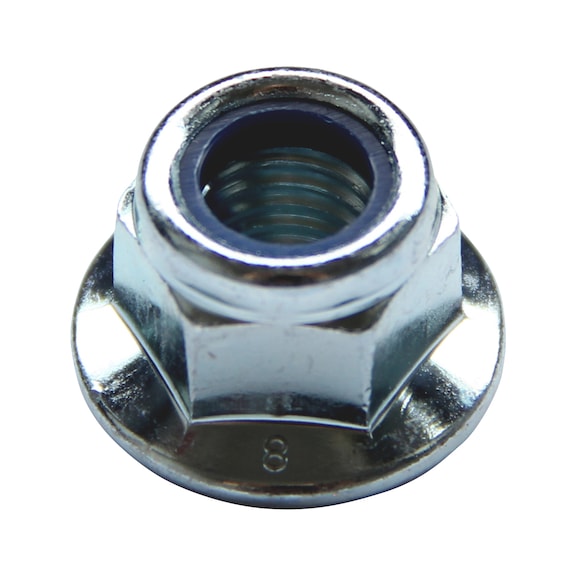

Hexagonal Nut with Flange & Nylon Insert | Strength Class 8 Steel | Blue Passivated Zinc Plated | @Pack of 25 | by Wurth
Hexagonal Nut with Flange & Nylon Insert is designed for secure mechanical fastening in machinery and automotive assemblies. Made from strength class 8 steel and featuring a blue passivated zinc plating, this nut retains its locking ability up to 120°C, making it ideal for applications requiring vibration resistance. Perfect for industrial equipment, it ensures reliable performance and compliance with EN 1663 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Nut with Flange & Nylon Insert | Strength Class 8 Steel | Blue Passivated Zinc Plated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 452610216
Alternatively Known As: Flanged Hex Nut, Nylon Insert Lock Nut, Self-Locking Hex Nut, EN 1663 Nut
Technical Specifications
- Thread type x nominal diameter (D): M16
- Height (h1): 20.3 mm
- Flange diameter (dc): 34.5 mm
- External drive (s1): WS24
- Material: Steel
- Property class: 8
- Surface: Zinc plated
- RoHS-compliant: Yes
- Dimensions (H x L x W): 20.3mm x 34.5mm x 24mm
- Weight: 0.05 kg
Key Features
- Nylon insert deforms over bolt thread to lock in place
- Retains locking ability up to 120°C
- Wide flange acts as integrated washer distributing load evenly
- Strength class 8 steel with blue passivated zinc plating
- Complies with EN 1663 standard replacing DIN 6926
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and secure fastening.
Applications
- Mechanical fastening in machinery and automotive assemblies
- Industrial equipment requiring secure locking nuts
- Applications needing vibration-resistant fasteners
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for industrial and mechanical fastening applications.
