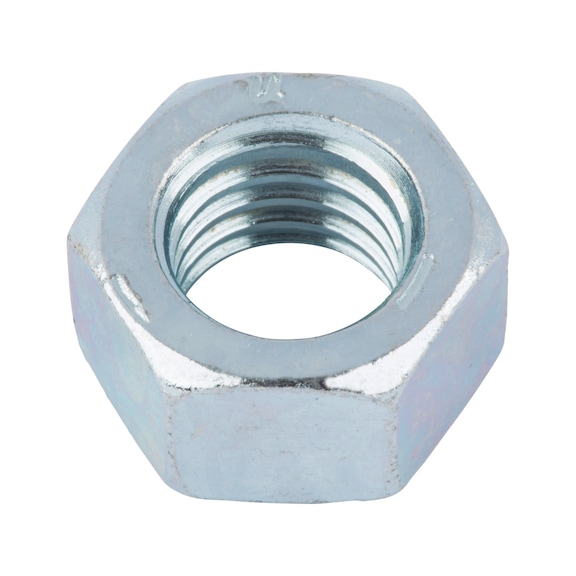

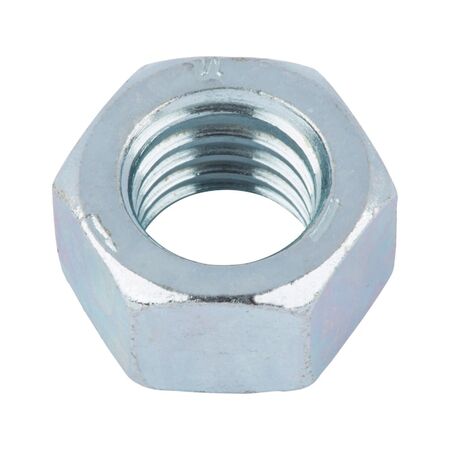

Hexagonal Nut Imperial ASME B1822 | Blue Passivated Zinc Plated | GR5 Steel | UNF Fine Thread | @Pack of 25 | by Wurth
Hexagonal Nut Imperial ASME B1822 with blue passivated zinc plating and GR5 steel construction — ideal for mechanical assemblies requiring fine thread fastening. Designed for industrial machinery and automotive components, this nut offers high strength and corrosion resistance, ensuring durability in precision engineering applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Nut Imperial ASME B1822 | Blue Passivated Zinc Plated | GR5 Steel | UNF Fine Thread | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7738057
Alternatively Known As: Hex Nut, Fine Thread Nut, UNF Nut, Zinc Plated Hex Nut, GR5 Steel Nut
Technical Specifications
- Nominal diameter: 9/16 inch (14.29 mm)
- Height: 0.496 inch (12.6 mm)
- Width across flats: 13/16 inch (20.64 mm)
- Material: Steel
- Property class: GR5
- Surface finish: Blue passivated zinc plated
- Thread type: UNF (Unified Fine Thread)
- Threads per inch: 18
- Mechanical properties regulated by SAE J995
- Thread tolerance according to ASME B1.1 = 2B (internal thread)
- Dimensions (H x L x W): 12.6mm x 20.64mm x 20.64mm
- Weight: 0.02 kg
Key Features
- Blue passivated zinc plated finish for corrosion resistance
- Grade 5 steel material for high strength
- UNF fine thread with 18 threads per inch
- Complies with ASME B1822 and ASME B1.1 thread tolerance standards
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and thread engagement.
Applications
- Mechanical assemblies requiring fine thread fastening
- Industrial machinery and automotive components
- Precision engineering applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste.
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth Hexagonal Nut Imperial ASME B1822 Blue Passivated Zinc Plated GR5 Steel UNF Fine Thread is available for immediate purchase, ideal for industrial and mechanical fastening applications.
