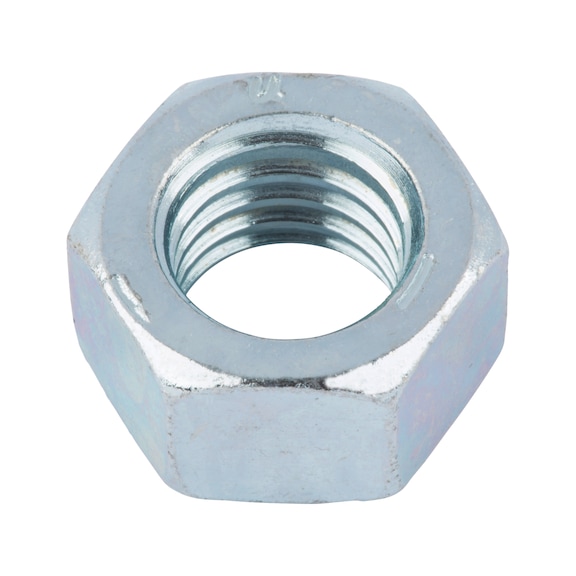

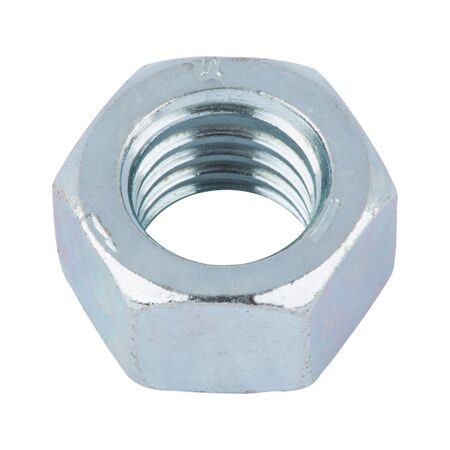

Hexagonal Nut Imperial ASME B1822 | Blue Passivated Zinc Plated | GR5 Steel | UNF Fine Thread | @Pack of 25 | by Wurth
Hexagonal Nut Imperial ASME B1822 with blue passivated zinc plating and GR5 steel construction — ideal for mechanical assemblies requiring fine thread fastening. Built for industrial machinery and automotive components, this nut ensures high mechanical strength and corrosion resistance, making it a reliable choice for structural applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Nut Imperial ASME B1822 | Blue Passivated Zinc Plated | GR5 Steel | UNF Fine Thread | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7738063
Alternatively Known As: Hex Nut, Fine Thread Nut, UNF Nut, Blue Zinc Plated Nut, GR5 Steel Nut
Technical Specifications
- Nominal diameter: 5/8 inch (15.875 mm)
- Height: 0.559 inch (14.2 mm)
- Width across flats: 15/16 inch (23.81 mm)
- Material: Steel
- Property class: GR5
- Surface finish: Blue passivated zinc plated
- Thread type: UNF (Unified Fine Thread)
- Thread starts per inch: 18
- Mechanical properties regulated by SAE J995
- Thread tolerance per ASME B1.1 standard: 2B (internal thread)
- Dimensions (H x L x W): 14.2mm x 23.81mm x 23.81mm
- Weight: 0.05 kg
Key Features
- Hexagonal nut with fine UNF thread
- Blue passivated zinc plated surface for corrosion resistance
- Made from GR5 steel ensuring high mechanical strength
- Complies with ASME B1822 and SAE J995 mechanical property standards
- Thread tolerance according to ASME B1.1 standard (2B for internal thread)
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and thread engagement.
Applications
- Mechanical assemblies requiring fine thread fastening
- Industrial machinery and automotive components
- Structural and engineering applications with UNF thread requirements
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste
- Durable steel construction reduces frequency of replacement
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth Hexagonal Nut Imperial ASME B1822 Blue Passivated Zinc Plated GR5 Steel UNF Fine Thread is available for immediate purchase, ideal for industrial and mechanical fastening applications.
