Hexagonal Setscrew with Flange & Reduced Head | M8 Thread | Zinc Plated | @Pack of 25 | by Wurth
Hexagonal setscrew with flange and reduced head, featuring an M8 thread and zinc plating for enhanced corrosion resistance. Perfect for automotive, industrial, and mechanical applications, this setscrew is designed to spread clamping load without the need for a washer, making it ideal for tight spaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Setscrew with Flange & Reduced Head | M8 Thread | Zinc Plated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 417190830
Alternatively Known As: Flanged Hex Setscrew, Reduced Head Setscrew, Zinc Plated Setscrew, Metric Thread Setscrew

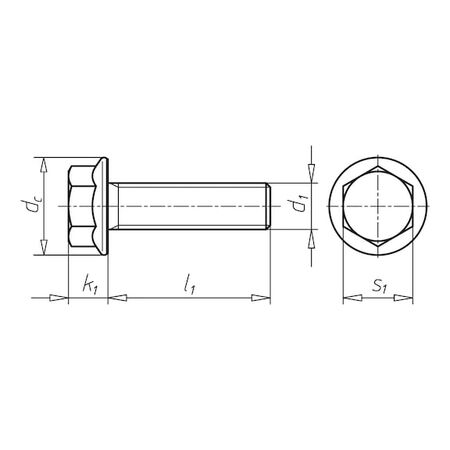

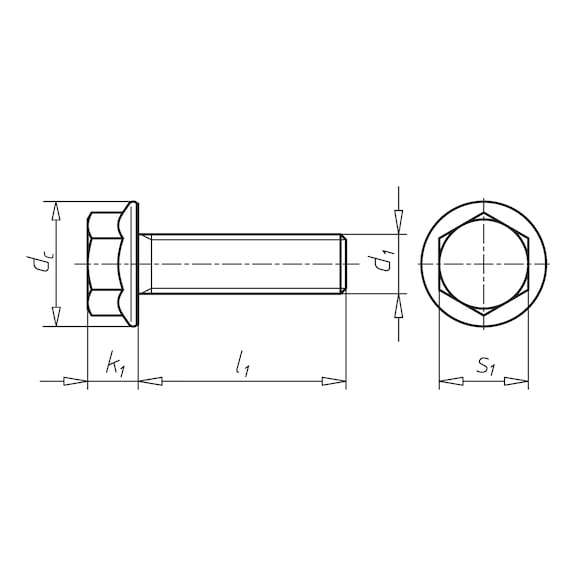

Technical Specifications
- Thread type x nominal diameter (d1): M8
- Length (l1): 30 mm
- Head diameter (dc): 17 mm
- Head height (k1): 8 mm
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated yellow
- Drive type: Hexagon
- External drive (s1): WS12
- Thread type: Metric thread
- Pitch: 1.25 mm
- Thread design: Full thread
- Dimensions (H x L x W): 8mm x 30mm x 17mm
- Weight: 0.05 kg
Key Features
- Flanged hex head designed to spread the clamping load without the need for a washer
- High tensile Class 8.8 zinc yellow plated for corrosion resistance
- Reduced head size for use in applications with limited space
- No serrations under the head
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper torque and secure fastening.
Applications
- Automotive: Suitable for use in a wide range of vehicles
- Industrial Equipment: Ideal for securing components in machinery
- General Mechanical: Suitable for various equipment requiring high tensile fasteners
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance, extending product life and reducing waste
- High durability reduces the need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Hexagonal Setscrew with Flange and Reduced Head 25 PCS is available for immediate purchase. Ideal for automotive, industrial, and mechanical fastening applications.
