Hexagonal Setscrew with Flange | Zinc Plated | High Tensile Strength Class 8.8 | Reduced Head Design | @Pack of 25 | by Wurth
Hexagonal setscrew with flange offers high tensile strength Class 8.8 and a reduced head design, making it ideal for tight spaces. Zinc plated for corrosion resistance, this fastener is perfect for automotive, industrial, and general mechanical applications, ensuring secure fastening and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Setscrew with Flange | Zinc Plated | High Tensile Strength Class 8.8 | Reduced Head Design | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 417190625
Alternatively Known As: Flanged Hex Setscrew, Reduced Head Setscrew, Zinc Plated Setscrew, Metric Thread Setscrew

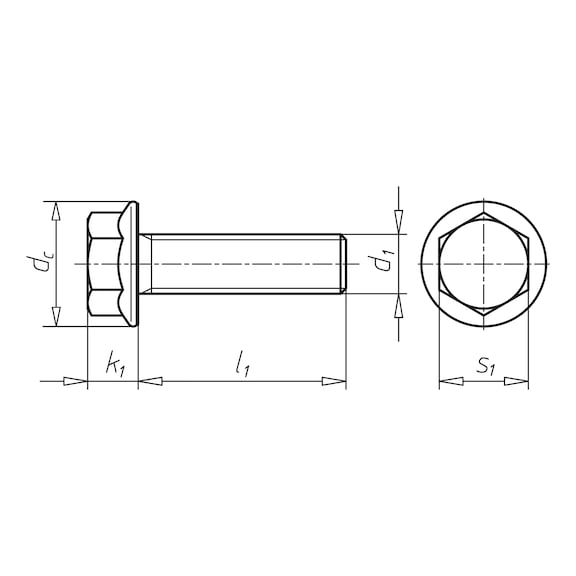

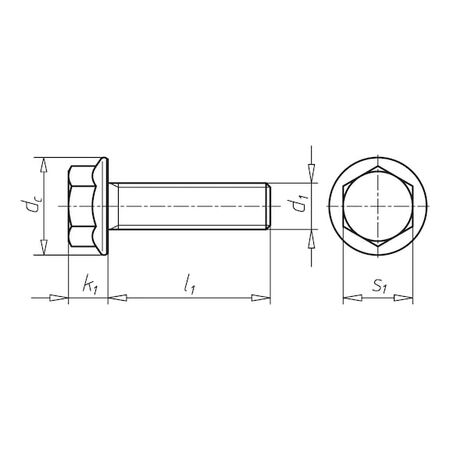

Technical Specifications
- Thread type x nominal diameter (d1): M6
- Length (l1): 25 mm
- Head diameter (dc): 13.5 mm
- Head height (k1): 6 mm
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated yellow
- Drive type: Hexagon
- External drive (s1): WS10
- Thread type: Metric thread
- Pitch: 1 mm
- Thread design: Full thread
- Dimensions (H x L x W): 6mm x 25mm x 13.5mm
- Weight: 0.05 kg
Key Features
- Zinc yellow plated for corrosion resistance
- High tensile strength Class 8.8
- Flanged hex head designed to spread clamping load without the need for a washer
- Reduced head size for use in tight spaces
- Full metric thread with 1 mm pitch
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper torque and secure fastening.
Applications
- Automotive: Suitable for use in a wide range of vehicles
- Industrial Equipment: Ideal for securing components in machinery
- General Mechanical: Suitable for various equipment requiring high tensile fasteners
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance, extending product life and reducing waste
- High durability reduces frequency of replacements
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Hexagonal Setscrew with Flange and Reduced Head 25 PCS is available now for immediate purchase. Ideal for automotive, industrial, and mechanical fastening applications.
