Hexagonal Setscrew with Flange | Zinc Plated | High Tensile Strength Class 8.8 | Reduced Head Design | @Pack of 25 | by Wurth
Hexagonal setscrew with flange offers high tensile strength Class 8.8 and a reduced head design, making it ideal for automotive and industrial applications. Zinc plated for corrosion resistance, this fastener ensures secure fastening in tight spaces without the need for a washer, perfect for various vehicle assemblies and machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagonal Setscrew with Flange | Zinc Plated | High Tensile Strength Class 8.8 | Reduced Head Design | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 417190820
Alternatively Known As: Flanged Hex Setscrew, Reduced Head Setscrew, Zinc Plated Setscrew, Metric Thread Setscrew M8

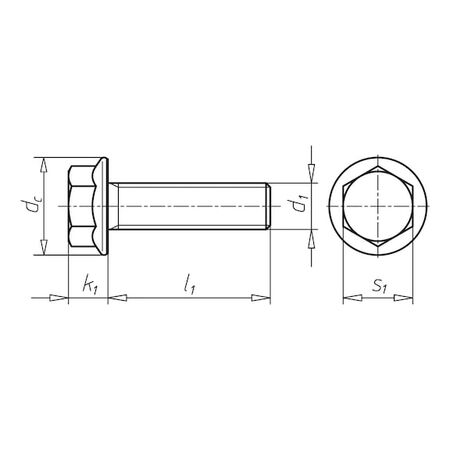

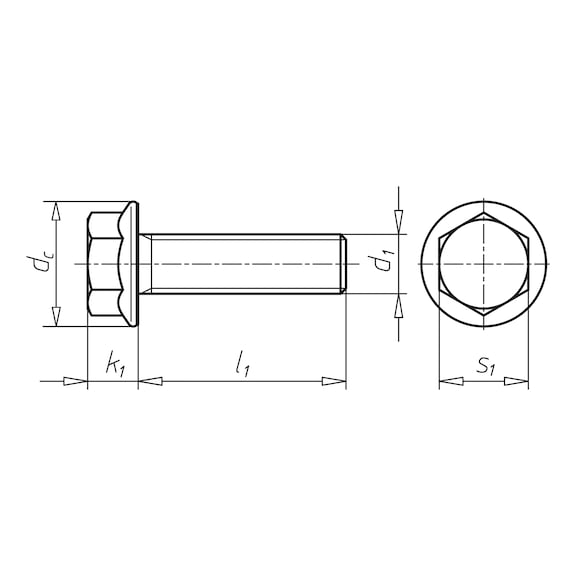

Technical Specifications
- Thread type x nominal diameter (d1): M8
- Length (l1): 20 mm
- Head diameter (dc): 17 mm
- Head height (k1): 8 mm
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated yellow
- Drive type: Hexagon
- External drive (s1): WS12
- Thread type: Metric thread
- Pitch: 1.25 mm
- Thread design: Full thread
- Dimensions (H x L x W): 8mm x 20mm x 8mm
- Weight: 0.05 kg
Key Features
- Zinc yellow plated for corrosion resistance
- High tensile strength Class 8.8
- Flanged hex head designed to spread clamping load without the need for a washer
- Reduced head size suitable for tight spaces
- Full metric thread with pitch 1.25 mm
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper torque and secure fastening.
Applications
- Automotive: Suitable for various vehicle assemblies
- Industrial Equipment: Used in machinery and equipment requiring secure fastening
- General Mechanical: Ideal for applications needing high tensile strength fasteners with reduced head size
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste
- High durability reduces frequency of replacements
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Hexagonal Setscrew with Flange and Reduced Head 25 PCS is available for immediate purchase, ideal for automotive, industrial, and mechanical fastening applications.
