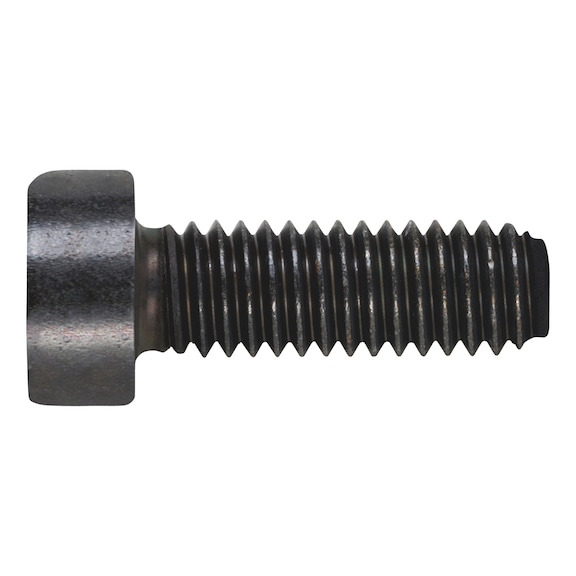

Hexalobular-type Cheese Head Screw M5 | Low Head Design | Zinc Nickel Coated | @Pack of 25 | by Wurth
Hexalobular-type cheese head screw M5 with a low head design and zinc nickel coating is perfect for mechanical assemblies requiring corrosion-resistant fasteners. Designed for industrial equipment and automotive applications, this screw offers a decorative black finish and high corrosion resistance, ensuring durability and aesthetic appeal.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexalobular-type Cheese Head Screw M5 | Low Head Design | Zinc Nickel Coated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 40006535
Alternatively Known As: Torx screw, Hexalobular socket screw, Low head socket screw, Zinc nickel coated screw, Black coated fastener
Technical Specifications
- Thread type x nominal diameter: M5
- Length: 35 mm
- Head diameter: 8.5 mm
- Head height: 3.65 mm
- Standards: ISO 14580
- Material: Steel
- Property class: 8.8
- Surface: Zinc nickel black coating (ZNBHL)
- RoHS-compliant: Yes
- Corrosion protection period: 480 hours
- Head type: Socket low head
- Drive type: Internal hexalobular (TX25)
- Thread type: Metric thread
- Pitch: 0.8 mm
- Thread form: Standard metric thread
- Thread design: Full thread
- Product class: A
- Dimensions (H x L x W): 3.65mm x 35mm x 8.5mm
- Weight: 0.05 kg
Key Features
- Galvanised chromium (VI)-free zinc-nickel black coating (ZNBHL) for high corrosion resistance
- Corrosion resistance up to 480 hours for diameter ≥ M4 according to DIN EN ISO 9227 NSS
- Decorative black finish with integrated lubricating particles in top coat
- Thermal capacity up to 120°C
- Adjusted friction coefficient range from 0.09μ to 0.14μ
- Full metric thread with internal hexalobular (TX25) drive
- Socket low head design for compact fastening
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical assemblies requiring corrosion-resistant fasteners
- Industrial equipment exposed to high corrosion risk environments
- Automotive and machinery fastening applications
- General purpose fastening with aesthetic black finish
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Chromium (VI)-free coating reduces environmental and health hazards
- Long corrosion resistance extends product life, reducing waste
- RoHS-compliant material ensures reduced hazardous substances
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
Wurth Hexalobular-type cheese head screws low head M5 x 35mm with zinc nickel black coating are available for immediate purchase. Ideal for industrial and mechanical applications requiring corrosion-resistant fasteners.
