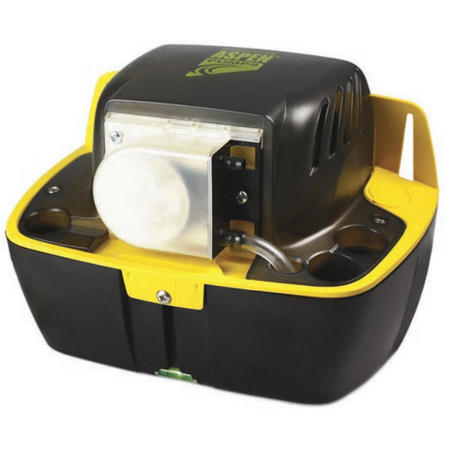

Hi-Lift Condensate Pump 11L h Max Flow Rate 12m Head Aspen Pumps
The Hi-Lift Condensate Pump is designed for efficient condensate removal in HVAC applications, featuring a maximum flow rate of 11L h and a vertical discharge
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Max flow rate: 11L/h at 12m head
- Maximum recommended head: 12m
- Tank capacity: 1L
- Noise level: 51 dB(A) at 1 meter
- Power supply: 230 VAC, 0.4A, 50/60Hz
- Rated for continuous operation
- Maximum water temperature: 40°C (104°F)
- Inlet size: 25mm
- Outlet size: 6mm
- IP Protection rating: IP20
- Safety switch: 3.0A normally closed
- Thermal protection included

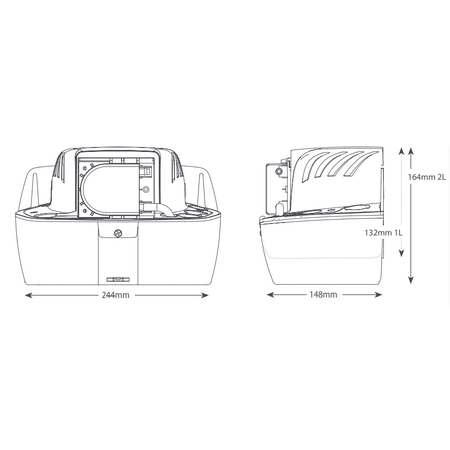

- Dimensions (H x L x W): 200mm x 250mm x 150mm
- Weight: 1.2 kg
Key Features
- High vertical discharge capability
- Easy to fit and maintain
- Built-in spirit level for accurate installation
- Thermal protection for motor safety
- Safety switch rated at 3.0A normally closed
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Ducted air conditioning units
- Cassette air conditioning units
Standards & Compliance
- Complies with AS/NZS 60335 - Safety of household and similar electrical appliances (related to electrical safety)
Environmental Benefits
- Efficient condensate removal helps prevent water damage and mold growth, promoting healthier indoor environments.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen Hi-Lift 1L Condensate Removal Pump is available now for immediate purchase. Ideal for HVAC applications requiring reliable condensate drainage with high vertical lift.
