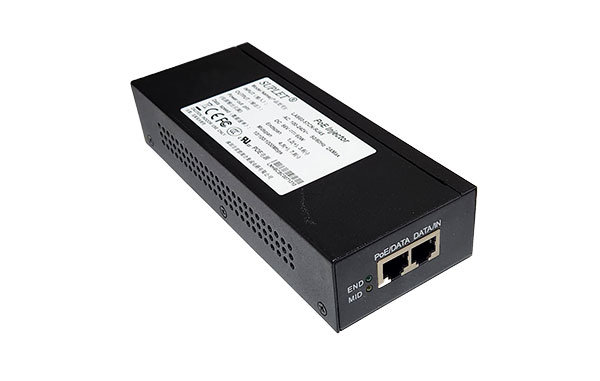

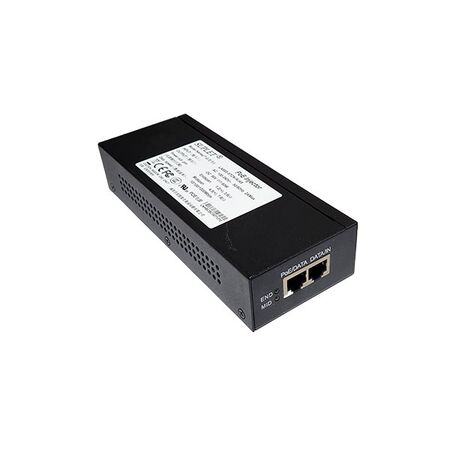

Hi-PoE Injector 60W Hikvision
Hikvision Hi-PoE injector features 60W output. Ideal for CCTV and network installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 60W PoE Injector, Hi-PoE Midspan Injector, Single-Port PoE Power Injector
Technical Specifications
- Model: LAS60-57CN-RJ45
- Maximum Output Power: 60 W
- Output Voltage: 54–57 V DC; nominal 56 V DC
- Input Voltage: 100–240 V AC
- Input Frequency: 50–60 Hz
- Maximum Input Current: 2 A
- PoE Standards: IEEE 802.3af and IEEE 802.3at
- Ethernet Speed: 10/100/1000 Mbps
- Network Interfaces: 2 × adaptive RJ45 ports
- Operating Temperature: -20°C to 60°C
- Operating Humidity: 5–90% relative humidity
- Protection: Overcurrent, short-circuit and overvoltage protection
- Indicators: Power and PoE status LEDs
- MTBF: At least 1,000,000 hours
- Dimensions (H x L x W): 37mm x 185mm x 70.8mm
- Weight: 0.473 kg
Key Features
- Provides up to 60 W of power for compatible Hi-PoE and PoE+ devices
- Supports Gigabit Ethernet data transmission alongside power delivery
- Suitable for Hikvision PTZ cameras, CCTV equipment, wireless access points and other network devices
- Two RJ45 ports provide DATA/IN and PoE/DATA connections
- Supports both endspan and midspan power injection
- Built-in overcurrent, short-circuit and overvoltage protection
- Compact enclosure for wall, cabinet or equipment-room installation
Professional Installation Requirements
- The injector connects to mains power and should be installed by a suitably qualified person in accordance with local electrical requirements. Use an appropriate Australian power lead and verify that the connected device supports the required PoE or Hi-PoE standard.
Applications
- Hikvision PTZ and high-power network camera installations
- CCTV and security surveillance systems
- Powering compatible wireless access points and network equipment
- Adding PoE power to a non-PoE network switch
- Commercial, industrial and residential network installations
Standards & Compliance
- AS/NZS 62368.1: relevant Australian/New Zealand safety standard for mains-powered information and communication technology equipment, including PoE equipment
Environmental Benefits
- Delivers power and data over a single Ethernet cable, reducing additional power cabling and installation materials
- Gigabit Ethernet and negotiated PoE delivery help avoid unnecessary power use by supplying compatible devices according to their requirements
- Durable design and protective circuitry can help extend service life and reduce replacement waste
Warranty Information
Hikvision accessory warranty is subject to the applicable sales agreement and regional terms. Hikvision Australia documentation lists accessories at 24 months where applicable; confirm coverage with the authorised Australian distributor at purchase.
Available Now
Available through Hikvision and authorised Australian security, CCTV and network equipment distributors.
