HID Crescendo 2300 Dual Interface DESFire EV1 8K | Multi-Protocol Support | FIDO2 Certified | by Dicker Data

BRAND: Dicker Data
SKU: 402360B-5000
$79.90 List price: $96.70
+ −
30 Days Return Delivery Options

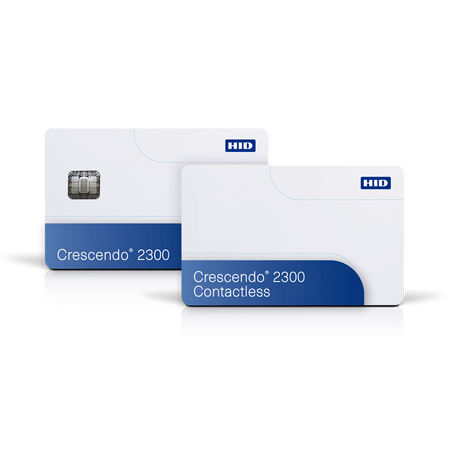

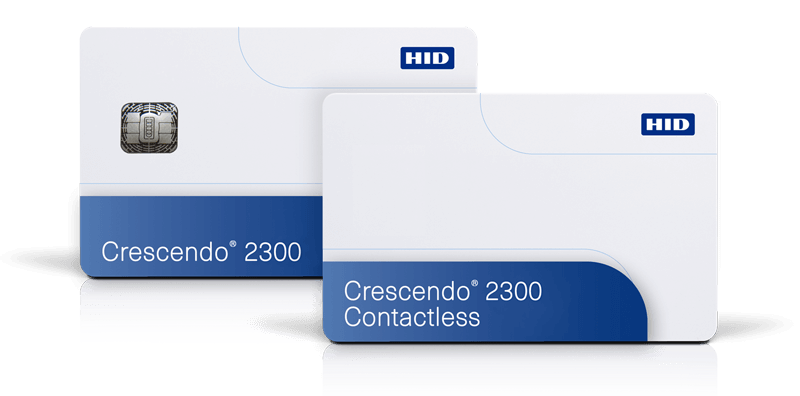

The HID Crescendo 2300 Dual Interface DESFire EV1 8K Smart Card offers seamless access with both contact and contactless capabilities, making it ideal for corporate security and access control. With multi-protocol support including FIDO2 and PKI, this card ensures high assurance and secure authentication for digital enterprise resources. Built for durability and compliance, it’s perfect for modern security implementations.

Product Name/Title: HID Crescendo 2300 Dual Interface DESFire EV1 8K | Multi-Protocol Support | FIDO2 Certified | by Dicker Data

Brand: Dicker Data

SKU: 402360B-5000

Alternatively Known As: HID Crescendo Smart Card, DESFire EV1 8K Smart Card, Dual Interface Access Card, FIDO2 Smart Card, Corporate Access Badge

Technical Specifications
  • Base Part: Crescendo 2300 402360B
  • Logical Access: Contact & Contactless
  • Physical Access: MIFARE DESFire EV1 8K
  • Security Services: PKI, FIDO 2.0, OATH
  • Platform: Java Card 3.0.5 Global Platform 2.2 NXP JCOP 3.0
  • Cryptographic Algorithms: AES-128, Triple DES, RSA1024 and 2048, ECC
  • Smart Card Interface: ISO 7816-3 & ISO 14443 Type A
  • Communication Speed: Contact up to 115,200 bps, Contactless up to 848 Kbps
  • EEPROM Size: 132 Kbytes (TBC)
  • EEPROM Endurance: 500,000 cycles
  • EEPROM Data Endurance: 20 years
  • Storage Temperature: -35°C to +50°C
  • Security Measures: Protection against SPA, DPA, Timing Analysis and Fault Induction; detection of out-of-range supply voltage, frequencies, temperatures, illegal address or instruction
  • Card Construction: Composite (40% PVC, 60% PET)
  • Printer Compatibility: Direct to Card (DTC) or High Definition (HDP) reverse printing
  • Security Evaluation and Certification: Common Criteria EAL 5+, NIST FIPS 140-2 Level 2, FIDO2 Level 1
  • Dimensions (H x L x W): 85.7mm x 0.84mm x 54mm
  • Weight: 0.01 kg
Key Features
  • Multi-protocol support including FIDO2, PKI, and OATH
  • Dual interface for contact and contactless access
  • Supports physical access technologies like Seos, iCLASS SR, MIFARE Classic, and Prox
  • High assurance aligned with NIST SP 80063 Digital Identity Guidelines
  • Single PIN for multiple access technologies
  • FIDO2 certified and supports PIV and PKI standards
Professional Installation Requirements
  • Professional installation recommended by security system integrators for proper configuration and deployment.
Applications
  • Corporate badge for physical access control
  • Passwordless access to digital enterprise resources
  • Secure online and cloud service authentication
  • Zero Trust security implementations
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable composite construction extends product life reducing waste
  • Supports digital authentication reducing reliance on physical keys and paper credentials
Warranty Information

5 years warranty.

Available Now

The HID Crescendo 2300 Dual Interface DESFire EV1 8K Smart Card is available for immediate purchase, ideal for corporate security and access control applications.
