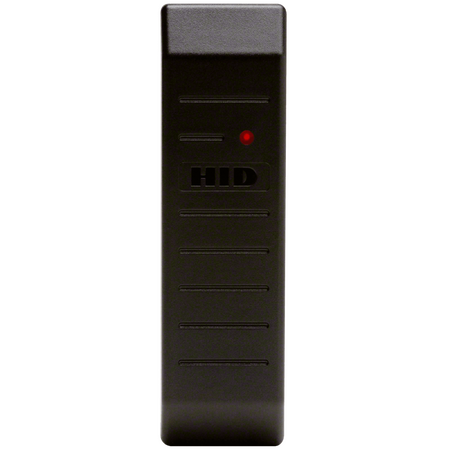

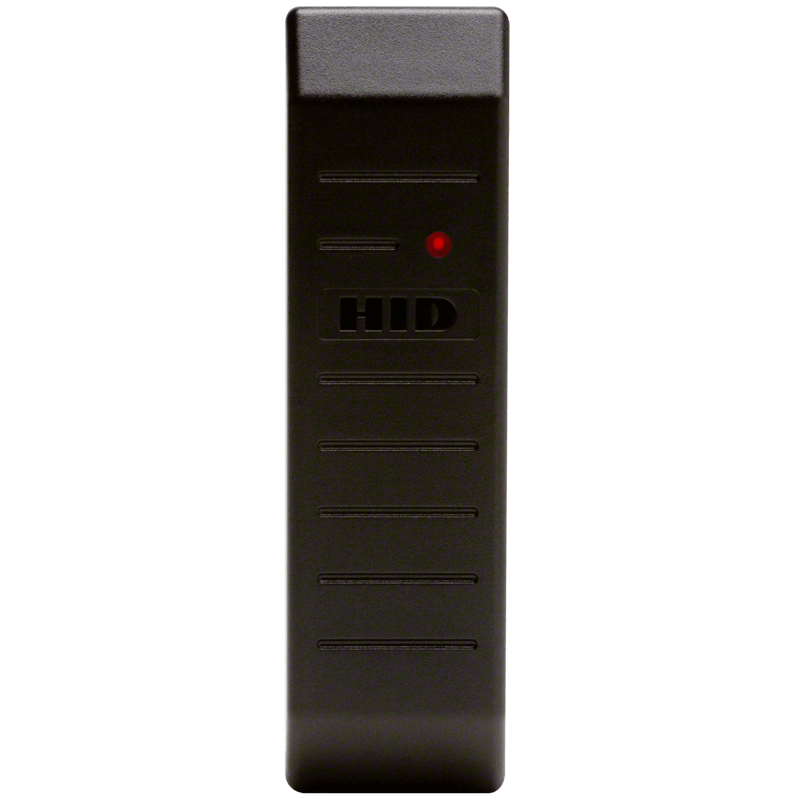

HID MiniProx Reader Wiegand | 125kHz Proximity Support | Pigtail Wiring | Charcoal Grey | by Dicker Data
The HID MiniProx Reader Wiegand is designed for secure access control, supporting 125kHz proximity credentials and featuring a durable pigtail wiring for easy installation. Ideal for both indoor and outdoor security applications, this reader is perfect for commercial and residential buildings, ensuring reliable integration with Wiegand interface controllers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HID MiniProx Reader Wiegand | 125kHz Proximity Support | Pigtail Wiring | Charcoal Grey | by Dicker Data
Brand: Dicker Data
SKU: 5365EGP00
Alternatively Known As: Proximity Card Reader, MiniProx Access Reader, Wiegand Proximity Reader, HID Proximity Reader
Technical Specifications
- Supported Credentials: 125kHz Proximity
- Controller Communication: Wiegand Output
- Wiring Type: Pigtail
- Current Draw: 35mA
- Input Voltage: 5 - 16 VDC
- Colour: Charcoal Grey
- Dimensions (H x L x W): 20mm x 150mm x 45mm
- Weight: 0.2 kg
Key Features
- Potted electronics for durability in indoor and outdoor environments
- Slim, attractive design suitable for various mounting options
- Available with pigtail wiring for easy installation
- Supports Wiegand output interface
- Hazardous Location version UL 1604 listed for Class I & II, Div. 2 and Class III
Professional Installation Requirements
- Professional installation by a qualified security system technician or electrician is recommended to ensure proper integration and compliance with safety standards.
Applications
- Access control systems for commercial and residential buildings
- Indoor and outdoor security installations
- Integration with Wiegand interface security controllers
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Lead-free design reduces environmental impact
- Durable potted electronics extend product lifespan, reducing waste
Warranty Information
25 years warranty on the reader.
Available Now
The HID MiniProx Reader Wiegand Classic Grey Cable Lead Free 25yr is available now for immediate purchase. Ideal for secure access control in commercial and residential environments.
