HID Signo 20 White Reader | Supports Multiple Credential Technologies | Configurable via HID Reader Manager App | by Dicker Data

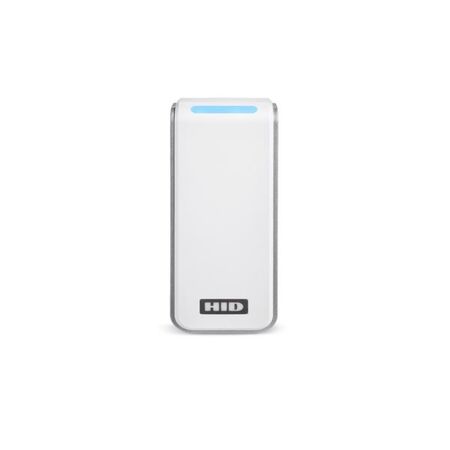

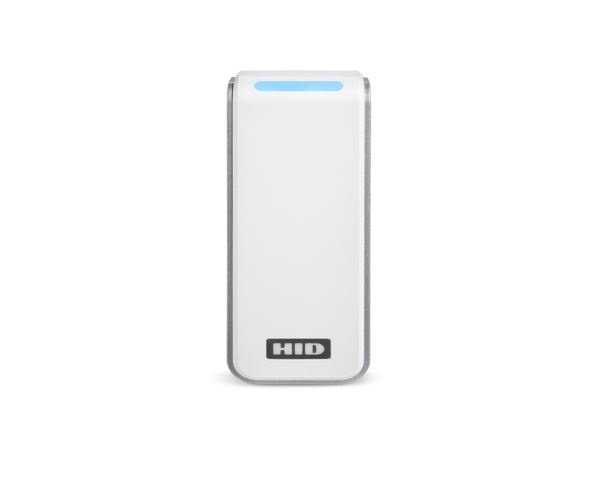

The HID Signo 20 White Reader is designed for secure access control, supporting a wide range of credential technologies including mobile IDs via NFC/BLE, iClass, and MIFARE. Ideal for both commercial and residential applications, this reader features a versatile 2x6 keypad layout and can be configured easily with the HID Reader Manager App, ensuring seamless integration into your security system.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HID Signo 20 White Reader | Supports Multiple Credential Technologies | Configurable via HID Reader Manager App | by Dicker Data
Brand: Dicker Data
SKU: 20NWS-00-000000
Alternatively Known As: HID Signo 20 Reader, HID Signo White Reader, HID Signo Access Control Reader
Technical Specifications
- Supported Credentials: Seos (Mobile ID via NFC/BLE), Seos, iClass SE, iClass SR, iClass, MIFARE DESFire EV1/EV2/EV3 (SIO), MIFARE Classic (SIO), MIFARE DESFire EV1 (CSN), MIFARE Classic (CSN), 125kHz HID Proximity, Indala Proximity, EM4102 Proximity
- High Frequency Read Range: 4 – 8 cm
- Mounting: Suited for mullion mount door installation or any flat surface mounting
- Keypad Layout: 2x6 Layout Keypad (Bit or buffered mode configurable)
- Controller Communication: Wiegand or RS485 Half Duplex (OSDP) configurable
- Other: Configurable with HID Reader Manager App (iOS and Android)
- Dimensions (H x L x W): 121mm x 22mm x 45mm
- Weight: 0.2 kg
Key Features
- Supports a wide range of credential technologies including cards, fobs, and mobile devices
- Highly versatile and powerful for future connectivity
- Configurable with HID Reader Manager App (iOS and Android)
- 2x6 Layout Keypad with bit or buffered mode configurable
- Controller communication via Wiegand or RS485 Half Duplex (OSDP) configurable
Professional Installation Requirements
- Professional installation by a qualified security systems technician or electrician is recommended to ensure proper configuration and secure mounting.
Applications
- Multi-factor authentication door applications
- Secure electronic access control for commercial and residential buildings
- Mullion mount door installation or any flat surface mounting
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports mobile credentials reducing the need for physical cards and plastic waste
- Energy-efficient design for reduced power consumption
Warranty Information
25 years warranty.
Available Now
The HID Signo 20 White Reader Standard Profile Pigtail 25YR is available now for immediate purchase. Ideal for secure access control in commercial and residential buildings.
