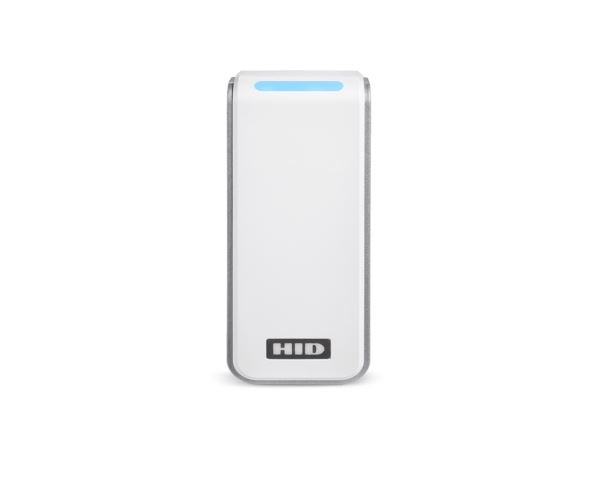

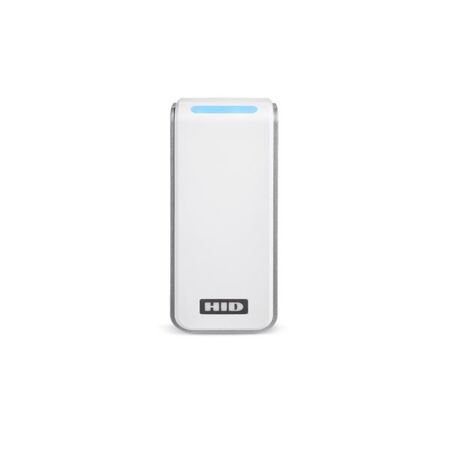

HID Signo 20 White Reader | Seos Credential Support | 2x6 Keypad Layout | by Dicker Data
The HID Signo 20 White Reader is designed for secure access control, supporting Seos credentials via NFC/BLE. With a versatile 2x6 keypad layout and configurable options through the HID Reader Manager App, it's perfect for both commercial and residential applications. Ideal for mullion mount installations, this reader ensures reliable performance and future connectivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HID Signo 20 White Reader | Seos Credential Support | 2x6 Keypad Layout | by Dicker Data
Brand: Dicker Data
SKU: 20NWS-01-000000
Alternatively Known As: HID Signo 20 SEOS Reader, HID Signo White Keypad Reader, HID Signo Access Control Reader
Technical Specifications
- Supported Credentials: Seos (Mobile ID via NFC/BLE), Seos
- High Frequency Read Range: 4 – 8 cm
- Mounting: Suitable for mullion mount door installation or any flat surface mounting
- Keypad Layout: 2x6 Layout Keypad (Bit or buffered mode configurable)
- Controller Communication: Wiegand or RS485 Half Duplex (OSDP) configurable
- Configurable with HID Reader Manager App (iOS and Android)
- Dimensions (H x L x W): 121.5mm x 21.5mm x 45mm
- Weight: 0.2 kg
Key Features
- Supports a wide range of credential technologies including cards, fobs, and mobile devices
- Highly versatile and powerful for future connectivity
- 2x6 Layout Keypad with bit or buffered mode configurable
- Configurable with HID Reader Manager App (iOS and Android)
- Suited for mullion mount door installation or any flat surface mounting
Professional Installation Requirements
- Professional installation by a qualified security systems technician or electrician is recommended to ensure proper configuration and secure mounting.
Applications
- Multi-factor authentication door applications
- Secure electronic access control for commercial and residential buildings
- Access control systems requiring narrow keypad readers
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports mobile credentials reducing the need for physical cards and fobs
- Energy-efficient operation reduces power consumption
Warranty Information
25 years warranty.
Available Now
The HID Signo 20 White Reader SEOS Profile Pigtail 25YR is available now for immediate purchase. Ideal for secure access control in commercial and residential buildings.
