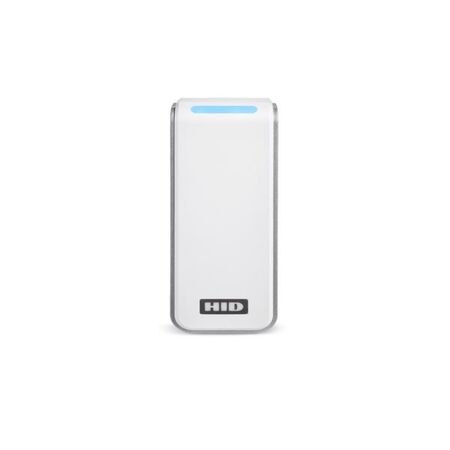

HID Signo 20 White Reader | Supports Seos & MIFARE | Configurable via App | by HID Global
The HID Signo 20 White Reader is designed for secure access control, supporting a wide range of credential technologies including Seos, iClass, and MIFARE. Ideal for commercial buildings and multi-factor authentication systems, this reader is configurable with the HID Reader Manager App for both iOS and Android, ensuring seamless integration and functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supported Credentials: Seos (Mobile ID via NFC/BLE), Seos, iClass SE, iClass SR, iClass, MIFARE DESFire EV1/EV2/EV3 (SIO), MIFARE Classic (SIO)
- High Frequency Read Range: 4 – 10 cm
- Mounting: Suitable for mullion mount door installation or any flat surface mounting
- Controller Communication: Wiegand or RS485 Half Duplex (OSDP) configurable
- Configuration: Configurable with HID Reader Manager App (iOS and Android)
- Dimensions (H x L x W): 121mm x 20mm x 80mm
- Weight: 0.3 kg
Key Features
- Supports a wide range of credential technologies including Seos, iClass, and MIFARE.
- Narrow keypad reader ideal for multi-factor authentication.
- Configurable with HID Reader Manager App for iOS and Android.
- Supports Wiegand or RS485 Half Duplex (OSDP) communication.
Professional Installation Requirements
- Professional installation by a qualified security systems technician or electrician is recommended to ensure proper integration and functionality.
Applications
- Access control for commercial buildings
- Multi-factor authentication door systems
- Secure entry for offices and restricted areas
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports mobile credentials reducing the need for physical cards and plastic waste.
Warranty Information
25 years warranty.
Available Now
The HID Signo 20 White Reader Smart Profile Pigtail 25YR is available now for immediate purchase. Ideal for secure access control in commercial and institutional environments.
