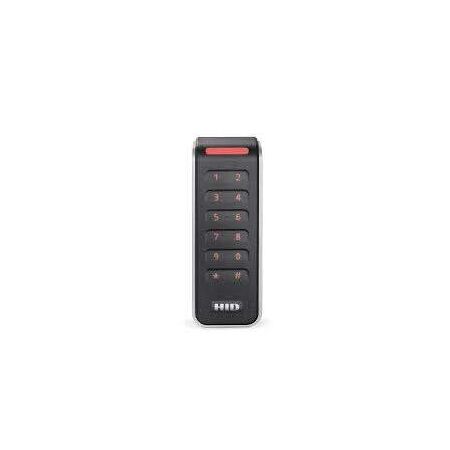

HID Signo 20K Keypad Black Reader | Supports Multiple Credential Technologies | Configurable via App | by Dicker Data
The HID Signo 20K Keypad Black Reader is designed for secure access control, supporting a wide range of credential technologies including Seos, iClass, and MIFARE. Ideal for both commercial and residential applications, this reader features a configurable 2x6 layout keypad and can be easily set up using the HID Reader Manager App on iOS and Android devices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HID Signo 20K Keypad Black Reader | Supports Multiple Credential Technologies | Configurable via App | by Dicker Data
Brand: Dicker Data
SKU: 20KNKS-00-000000
Alternatively Known As: HID Signo Keypad Reader, HID 20K Keypad Reader, HID Signo Access Control Reader
Technical Specifications
- Supported Credentials: Seos (Mobile ID via NFC/BLE), Seos, iClass SE, iClass SR, iClass, MIFARE DESFire EV1/EV2/EV3 (SIO), MIFARE Classic (SIO), MIFARE DESFire EV1 (CSN), MIFARE Classic (CSN), 125kHz HID Proximity, Indala Proximity, EM4102 Proximity
- High Frequency Read Range: 4 – 8 cm
- Mounting: Suited for mullion mount door installation or any flat surface mounting
- Keypad Layout: 2x6 Layout Keypad (Bit or buffered mode configurable)
- Controller Communication: Wiegand or RS485 Half Duplex (OSDP) configurable
- Configuration: Configurable with HID Reader Manager App (iOS and Android)
- Dimensions (H x L x W): 121.5mm x 21.5mm x 45mm
- Weight: 0.15 kg
Key Features
- Supports a wide range of credential technologies including Seos, iClass, MIFARE, HID Proximity, and more
- 2x6 layout keypad with bit or buffered mode configurable
- Configurable with HID Reader Manager App for iOS and Android
- Mounting suited for mullion mount door installation or any flat surface
Professional Installation Requirements
- Professional installation by a qualified security systems technician or electrician is recommended to ensure proper configuration and secure mounting.
Applications
- Multi-factor authentication door access control
- Secure electronic access for commercial and residential buildings
- Integration with mobile devices and various credential technologies
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports mobile credentials reducing the need for physical cards and fobs
- Energy-efficient design for reduced power consumption
Warranty Information
25 years warranty.
Available Now
The HID Signo 20K Keypad Black Reader Standard Profile Pigtail 25YR is available now for immediate purchase. Ideal for secure access control in commercial and residential buildings.
