HID Signo 40 Reader | Supports Seos & MIFARE | Narrow Keypad Design | Configurable Communication | by Dicker Data

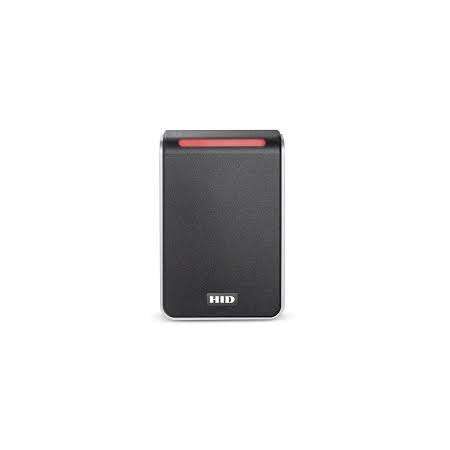

The HID Signo 40 Reader is designed for secure access control, supporting a wide range of credential technologies including Seos, iClass, and MIFARE. Its narrow keypad design allows for easy installation on mullion mounts or flat surfaces, making it ideal for commercial and industrial applications. Configurable via the HID Reader Manager App, this reader ensures seamless integration into your security systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HID Signo 40 Reader | Supports Seos & MIFARE | Narrow Keypad Design | Configurable Communication | by Dicker Data
Brand: Dicker Data
SKU: 40TKS-00-000000
Alternatively Known As: HID Signo Keypad Reader, HID Signo 40 Access Reader, HID Signo Multi-Credential Reader
Technical Specifications
- Supported Credentials: Seos (Mobile ID via NFC/BLE), Seos, iClass SE, iClass SR, iClass, MIFARE DESFire EV1/EV2/EV3 (SIO), MIFARE Classic (SIO), MIFARE DESFire EV1 (CSN), MIFARE Classic (CSN), 125kHz HID Proximity, Indala Proximity, EM4102 Proximity
- High Frequency Read Range: 4 – 10 cm
- Mounting: Suitable for mullion mount door installation or any flat surface mounting
- Controller Communication: Wiegand or RS485 Half Duplex (OSDP) configurable
- Configuration: Via HID Reader Manager App (iOS and Android)
- Dimensions (H x L x W): 121mm x 20mm x 80mm
- Weight: 0.2 kg
Key Features
- Supports a wide range of credential technologies including Seos, iClass, MIFARE, and HID Proximity
- Narrow keypad reader design suitable for mullion mount or flat surface installation
- Configurable communication via Wiegand or RS485 Half Duplex (OSDP)
- Configurable with HID Reader Manager App for iOS and Android
Professional Installation Requirements
- Professional installation by a qualified security systems technician or electrician is recommended to ensure proper configuration and secure mounting.
Applications
- Access control for secure entry points
- Multi-factor authentication door applications
- Commercial and industrial security systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports mobile credentials reducing the need for physical cards and fobs
- Energy-efficient operation contributing to lower power consumption
Warranty Information
25 years warranty.
Available Now
The HID Signo 40 Reader Standard Profile Term Strip 25YR by Dicker Data is available now for immediate purchase. Ideal for commercial and industrial secure access control applications.
