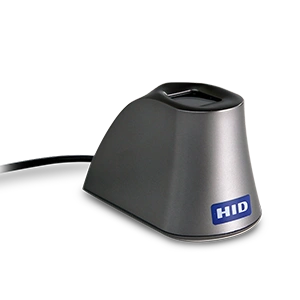

HID Signo Single Finger Biometric USB Reader | IP52 Rated | Multispectral Imaging & Liveness Detection | by Dicker Data
HID Signo Single Finger Biometric USB Reader offers advanced multispectral imaging and liveness detection, making it ideal for secure enterprise access control. Designed for reliable performance in various environments, it captures high-quality fingerprint images even in challenging conditions. With easy integration and management through HID Biometric Manager software, this reader is perfect for workplaces requiring robust biometric authentication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HID Signo Single Finger Biometric USB Reader | IP52 Rated | Multispectral Imaging & Liveness Detection | by Dicker Data
Brand: Dicker Data
SKU: SIGNO-B-USB
Alternatively Known As: HID Signo Fingerprint Reader, HID Signo Biometric USB Reader, HID Signo Enrollment Device, HID Signo Fingerprint Scanner
Technical Specifications
- Technology: Patented Lumidigm® Multispectral Imaging (MSI)
- Output Image Resolution / Bit Depth: 500 dpi / 8-bit, 256 grayscale
- Platen Area: 13.9 mm x 17.4 mm rectangle, uncoated chemical resistant glass
- Image Output Format: Uncompressed or WSQ compressed images (FBI Certified)
- Template Output Format: ANSI 378 and ISO 19794-2 compliant (MINEX Ill certified)
- Presentation Attack Detection (PAD): ISO/IEC 30107-3 Level 1 certified, MSI Live Finger Detection
- Finger Detection to Image Out: 0.35 sec (typical on Windows Host)
- Operating Temperature: 10º C to 60º C
- Operating Humidity: 0 - 95% RH
- ESD Immunity: IEC 61000-4-2 level 4 (+/-15kV air discharge, 8kV contact discharge)
- Interface: USB 2.0 high speed (480 Mbps) with 1m USB cable
- Operating Systems Supported: Windows 10 (64-bit)
- Enclosure Material: ABS Plastic
- Power Supply Requirements: +5 VDC, 125 mA Operational (peak)
- Interoperability: ANSI 378, ISO 19794-2, ISO/IEC 19784-1, MINEX Ill-certified algorithm, WHQL Drivers
- Device Certifications: CE (EU), CB, FCC (US), UL (US), RCM (Australia, New Zealand), NOM/NYCE/IFTEL (Mexico), ICASA (South Africa)
- Ingress Protection: IP50 overall, IP65 ingress at platen
- Dimensions (H x L x W): 53mm x 77mm x 47mm
- Weight: 0.15 kg
Key Features
- Multispectral fingerprint imaging works in all environments, capturing high-quality fingerprint images even when the finger is dry, wet, dirty or in strong light
- High-performance liveness detection prevents fraudulent use of fake or stolen biometric data
- Encryption and physical tamper detection enhance security
- Easy configuration and management with HID Biometric Manager software
- Supports software upgrades over the network
- API available for integration with access control software solutions
Professional Installation Requirements
- Professional installation by qualified IT or security personnel is recommended to ensure proper integration with access control systems and secure configuration.
Applications
- Enterprise access control systems
- Decentralized fingerprint enrollment
- Secure electronic access management
- Biometric authentication for workplaces
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Complies with REACH, RoHS, and WEEE environmental standards to reduce hazardous substances and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to Dicker Data or HID for specific warranty terms.
Available Now
The HID Signo Single Finger Biometric Enrollment USB Desktop Reader IP52 by Dicker Data is available now for immediate purchase. Ideal for enterprise and commercial access control applications requiring secure and efficient fingerprint enrollment.
