High Current Appliance Inlet 250A | IP66 Rated | Stainless Steel Screws by NHP
High current appliance inlet with 250A capacity and IP66 rating—ideal for industrial and commercial applications. Built for demanding environments, with robust stainless steel screws for secure connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

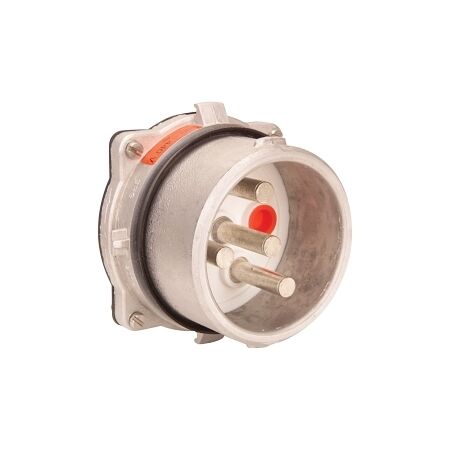

Product Name/Title: PROCONECT 3PS200 Appliance Inlet, 3P+N+E, 250A (AC23 160A) 440V AC
Brand: NHP
SKU: 3PS2A3NE01
Alternatively Known As: High Current Appliance Inlet, 3 Phase Inlet, Industrial Inlet Socket
Technical Specifications
- Amperage: 250 A
- Voltage: 380-440 V
- Contact Configuration: 3P+N+E
- Construction Type: Inlet
- Material Insulation Body: Other
- Contact Material: Other
- Material Screw: Stainless steel
- Degree of Protection: IP66
- Nominal Tightening Torque: 10 Nm
- Operating Temperature: -30-60 °C
- Dimensions (H x L x W): 100mm x 119mm x 100mm
- Weight: 1.5 kg
Key Features
- High current capacity of 250A for demanding applications.
- IP66 rated for protection against dust and water ingress.
- Robust stainless steel screws for secure connections.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Heavy machinery and equipment
- Commercial: Large electrical installations
- General: Any application requiring high current connections
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The PROCONECT 3PS200 Appliance Inlet is available now for immediate purchase. Ideal for industrial and commercial applications requiring high current connections.
