High Current Appliance Inlet 90A | 440V AC | IP66 Rated | Polyamide Body by NHP
High current appliance inlet with 90A rating and 440V AC voltage—ideal for industrial and commercial power distribution. Built for durability with IP66 protection and polyamide body, ensuring robust performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

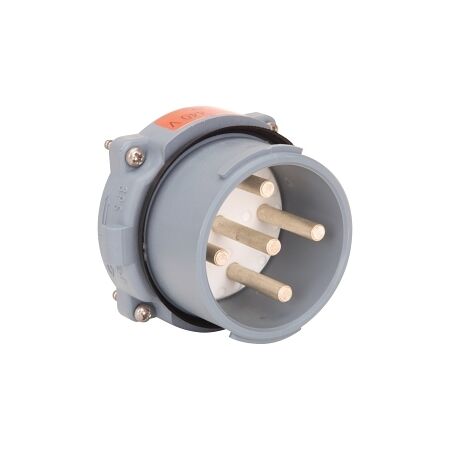

Product Name/Title: PROCONECT 3PS63 Appliance Inlet, 3P+N+E+2p, 90A (AC23 63A) 440V AC
Brand: NHP
SKU: 3PS63A3NE01P
Alternatively Known As: 3P+N+E Inlet, High Current Appliance Inlet, 90A Inlet
Technical Specifications
- Amperage: 90 A
- Voltage: 380-440 V
- Contact Configuration: 3P+N+E+2P
- Construction Type: Inlet
- Material Insulation Body: Polyamide (PA)
- Contact Material: Other
- Material Screw: Stainless steel
- Degree of Protection: IP66
- Nominal Tightening Torque: 4 Nm
- Operating Temperature: -30-60 °C
- Dimensions (H x L x W): 88mm x 88mm x 88mm
- Weight: 0.39 kg
Key Features
- High amperage rating of 90A for robust applications.
- IP66 rated for protection against dust and water ingress.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Heavy machinery and equipment
- Commercial: Power distribution in large facilities
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The PROCONECT 3PS63 Appliance Inlet is available now for immediate purchase. Ideal for industrial and commercial applications requiring high current capacity.
