High Current Socket Outlet 250A | 380-440V | IP66 Rated | 3P+N+E+2p by NHP
High current socket outlet with 250A rating and 380-440V range—ideal for industrial and commercial applications. Built for durability with IP66 protection, ensuring safety in heavy machinery and high power environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

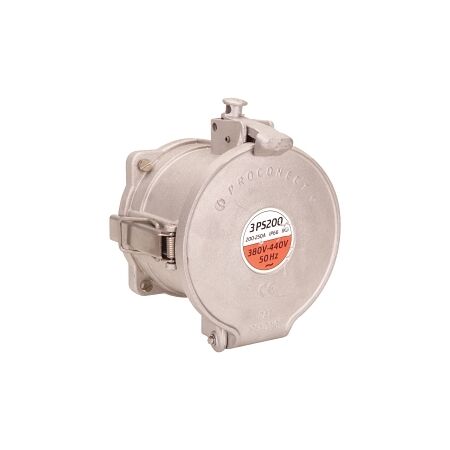

Product Name/Title: PROCONECT 3PS200 Socket Outlet, 3P+N+E+2p, 250A (AC23 160A) 440V AC
Brand: NHP
SKU: 3PS2D3NE01P
Alternatively Known As: High Current Socket Outlet, Industrial Socket, 3 Phase Socket
Technical Specifications
- Amperage: 250 A
- Voltage: 380-440 V
- Contact Configuration: 3P+N+E+2P
- Construction Type: Outlet
- Material Insulation Body: Other
- Contact Material: Other
- Material Screw: Stainless steel
- Degree of Protection: IP66
- Nominal Tightening Torque: 10 Nm
- Operating Temperature: -30-60 °C
- Dimensions (H x L x W): 100mm x 158mm x 100mm
- Weight: 2.4 kg
Key Features
- Rated for 250A with a voltage range of 380-440V.
- IP66 rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Heavy machinery and equipment
- Commercial: High power applications in various sectors
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Durable construction reduces the need for frequent replacements.
Warranty Information
Standard warranty applies.
Available Now
The NHP PROCONECT 3PS200 Socket Outlet is available now for immediate purchase. Ideal for industrial and commercial applications requiring high power solutions.
Non-Returnable & Non-Cancellable
